7.3.1 Differential Analog inputs

The TPA6404-Q1 features balanced analog audio inputs to optimize audio performance. The differential inputs give maximum hum and noise suppression.

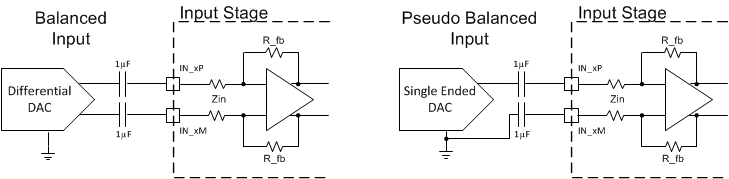

With a single-ended analog input it is recommended to connect the inputs as pseudo balanced for best hum and noise suppression. Figure 7-1 shows the proposed balanced and single ended connections.

TPA6404-Q1 Differential Analog Input ConnectionsFigure 7-1 Differential Analog Input Connections
