9.2.1.4 PBTL Application

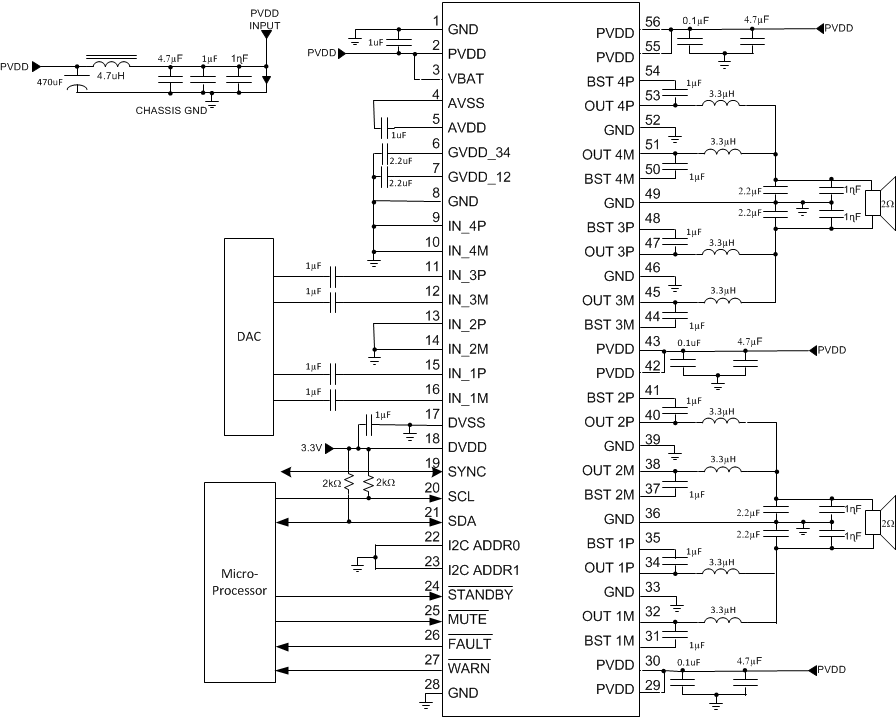

Figure 9-5 shows a schematic of a typical 2-channel solution for a head unit or external amplifier application where high power into 2 Ω is required.

TPA6404-Q1 2-Channel PBTL Application SchematicFigure 9-5 2-Channel PBTL Application Schematic
