2.2.1 Test Mode 1

Configure PHY to Test Mode 1 for the following tests by setting MDIO registers according to 1000 Base Test Mode 1 in Appendix B.

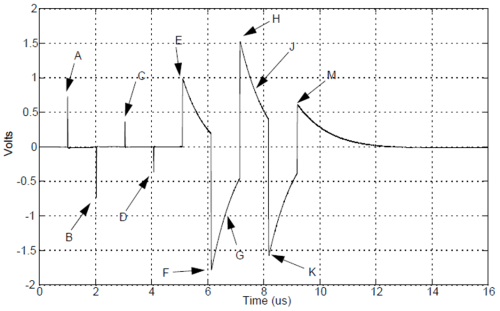

IEEE Test Mode 1 per Standard Figure 2-2 IEEE Test Mode 1 per Standard
DP8386x Test Mode 1 Output Waveform Figure 2-3 DP8386x Test Mode 1 Output Waveform
