2.2.3 Test Mode 4

Configure PHY to output Test Mode 4 by setting MDIO registers according to 1000 Base Test Mode 4 in Appendix B.

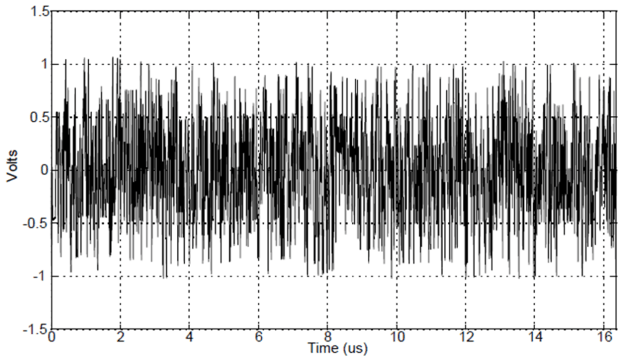

IEEE Test Mode 4 per Standard Figure 2-6 IEEE Test Mode 4 per Standard
DP8386x Test Mode 4 Output Waveform Figure 2-7 DP8386x Test Mode 4 Output Waveform
