4.14 FPD Interface (Audio Deserializer)

CP Board supports TI ‘s FPD Link III De-serializer IC Mfr. Part# DS90UB926QSQE for recover the audio signals from Tuner interface using HSD connector Mfr. Part# D4S20G-400A5-C. The de-serializer will recover up to eight digital audio channels plus I2C channel across digital link.

This audio signal shall be connected to McASP11 port of J721E SoC through 1:3 DEMUX (SN74CBT16214CDGGR). The channel selection is supported by both GPIO expander and EVM configuration DIP switch (SW3).

The I2C3 signals of J721E being used for controlling of the De-serializer. A 40.2KΩ pull down is provided on ID[X] pin to set the 7‘b I2C address to 0x2C.

GUID-5BAA669C-9C2A-40EE-BE84-4E767BD37E97-low.gif Figure 4-34 FPD-Link UB926 ID Setting Circuit

Power +12 V is provided to the HSD connector using a power switch TPS1H100AQPWPRQ1 to power the FPD Link-III Tuner expansion board. The power switch is controlled by a GPIO expander signal (UB926_PWR_SW_CNTRL).

Figure 4-35 shows the mode selection for the de-serializer.

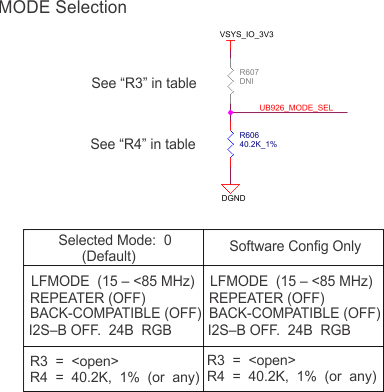

GUID-FEBE252C-44E5-4D68-8DC9-85DF268B848C-low.gif Figure 4-35 FPD-Link UB926 Mode Selection Circuit

Table 4-19 lists the pinout for the HSD connector J1.

Table 4-19 FPD Audio Deserializer HSD Connector Pinout
Pin No Signal
1 GND
2 RIN_N
3 POWER (12V)
4 RIN_P
