7.23 Typical Characteristics

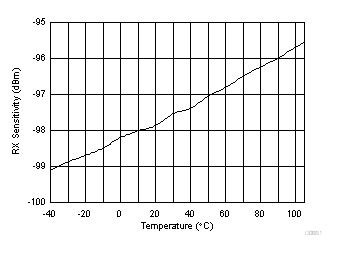

CC2640R2F-Q1 Bluetooth Low Energy Sensitivity vs Temperature
Figure 7-4 Bluetooth Low Energy Sensitivity vs Temperature

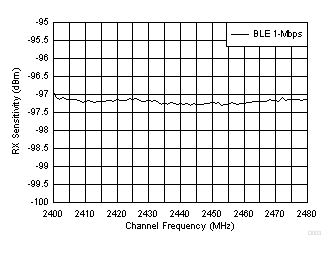

CC2640R2F-Q1 Bluetooth Low Energy Sensitivity vs Channel Frequency
Figure 7-6 Bluetooth Low Energy Sensitivity vs Channel Frequency
CC2640R2F-Q1 TX Output Power vs Supply Voltage (VDDS)
Figure 7-8 TX Output Power vs Supply Voltage (VDDS)

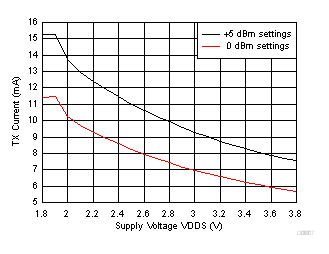

CC2640R2F-Q1 TX Current Consumption vs Supply Voltage (VDDS)
Figure 7-10 TX Current Consumption vs Supply Voltage (VDDS)

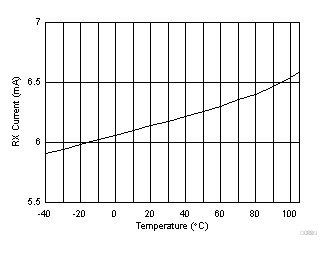

CC2640R2F-Q1 RX Mode Current Consumption vs Temperature
Figure 7-12 RX Mode Current Consumption vs Temperature
CC2640R2F-Q1 Active Mode (MCU Running, No Peripherals) Current Consumption vs Temperature
Figure 7-14 Active Mode (MCU Running, No Peripherals) Current Consumption vs Temperature
CC2640R2F-Q1 Standby Mode Current Consumption vs Temperature
Figure 7-16 Standby Mode Current Consumption vs Temperature

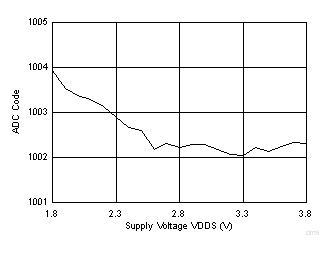

CC2640R2F-Q1 SoC ADC Output vs Supply Voltage (Fixed Input, Internal Reference, No Scaling)
Figure 7-18 SoC ADC Output vs Supply Voltage (Fixed Input, Internal Reference, No Scaling)

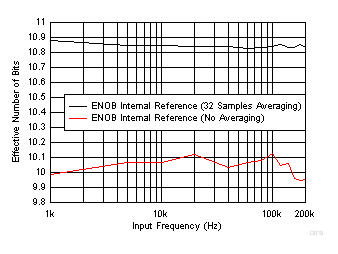

CC2640R2F-Q1 SoC ADC ENOB vs Sampling Frequency (Input Frequency = FS / 10)
Figure 7-20 SoC ADC ENOB vs Sampling Frequency (Input Frequency = FS / 10)

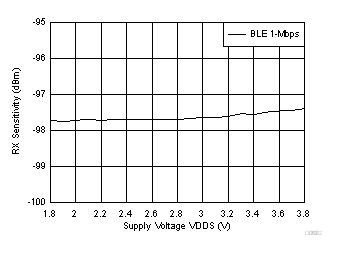

CC2640R2F-Q1 Bluetooth Low Energy Sensitivity vs Supply Voltage (VDDS)
Figure 7-5 Bluetooth Low Energy Sensitivity vs Supply Voltage (VDDS)
CC2640R2F-Q1 TX Output Power vs Temperature
Figure 7-7 TX Output Power vs Temperature

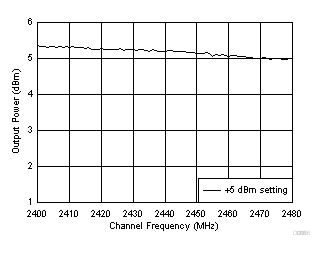

CC2640R2F-Q1 TX Output Power vs Channel Frequency
Figure 7-9 TX Output Power vs Channel Frequency
CC2640R2F-Q1 RX Mode Current vs Supply Voltage (VDDS)
Figure 7-11 RX Mode Current vs Supply Voltage (VDDS)
CC2640R2F-Q1 TX Mode Current Consumption vs Temperature
Figure 7-13 TX Mode Current Consumption vs Temperature
CC2640R2F-Q1 Active Mode (MCU Running, No Peripherals) Current Consumption vs Supply Voltage (VDDS)
Figure 7-15 Active Mode (MCU Running, No Peripherals) Current Consumption vs Supply Voltage (VDDS)
CC2640R2F-Q1 SoC ADC Effective Number of Bits vs Input Frequency (Internal Reference, No Scaling)
Figure 7-17 SoC ADC Effective Number of Bits vs Input Frequency (Internal Reference, No Scaling)
CC2640R2F-Q1 SoC ADC Output vs Temperature (Fixed Input, Internal Reference, No Scaling)
Figure 7-19 SoC ADC Output vs Temperature (Fixed Input, Internal Reference, No Scaling)

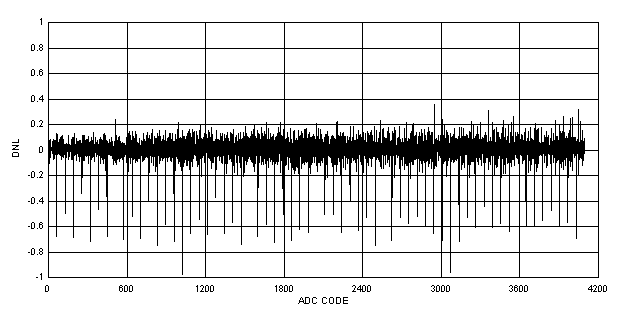

CC2640R2F-Q1 SoC ADC DNL vs ADC Code (Internal Reference, No Scaling)
Figure 7-21 SoC ADC DNL vs ADC Code (Internal Reference, No Scaling)

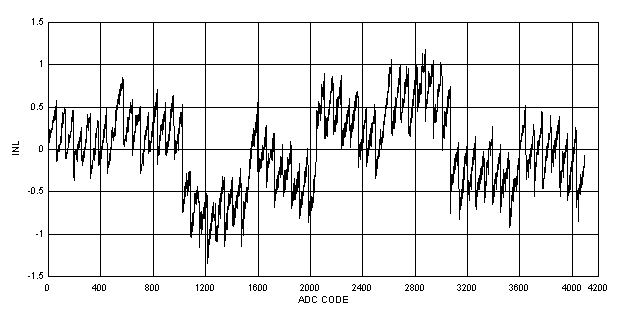

CC2640R2F-Q1 SoC ADC INL vs ADC Code (Internal Reference, No Scaling)
Figure 7-22 SoC ADC INL vs ADC Code (Internal Reference, No Scaling)
