7.3.11 Logic Level, tri-level and quad-level Pin Diagrams

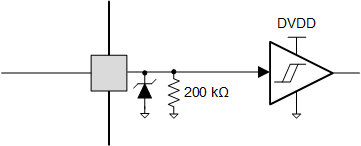

Figure 7-17 shows the input structure for STEP, DIR, nSLEEP, SDI, ENABLE and SCLK pins.

GUID-ACA3E2E2-B31F-46C5-970A-181128FDF3EC-low.gifFigure 7-16 Logic-Level Input Pin Diagram

Figure 7-17 shows the input structure for the logic-level pin nSCS.

GUID-72277F2D-A0B1-4395-A0A2-175C9EDF82F1-low.gifFigure 7-17 Logic-Level with Internal Pull-up Input Pin Diagram
