The SFRA library has been run successfully on a number of power topologies. The following section shows the comparison between modeled and measured frequency responses on the DPSWorkshop board, which is a buck converter. This clearly shows that the modeling was close enough to what was measured and vice versa. Some margin of error is expected due to parameter estimation error and non ideality of the model.
Figure 15. Plant Frequency Response Modeled vs Measured on DPSWrkShpKit

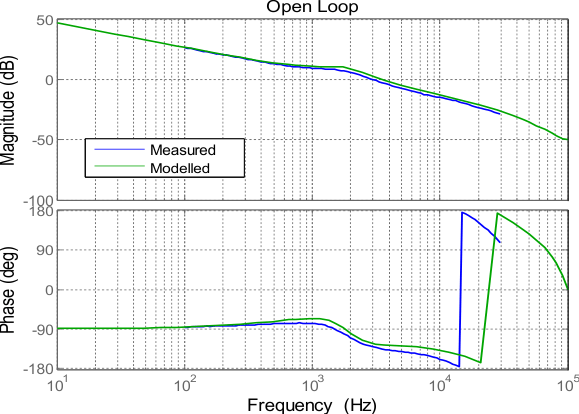

Figure 16. Open Loop Frequency Response Modeled vs Measured on DPSWrkShpKit The SFRA GUI has been validated in the following TI Designs for different topologies.
