8.41 Comparator_A+

over recommended operating free-air temperature range (unless otherwise noted)(1)(2)
PARAMETERTEST CONDITIONSVCCMINTYPMAXUNIT
I(DD)CAON = 1, CARSEL = 0, CAREF = 02.2 V2540µA
3 V4560
I(Refladder/RefDiode)CAON = 1, CARSEL = 0, CAREF = 1/2/3,
No load at P2.3/CA0/TA1 and P2.4/CA1/TA2		2.2 V3050µA
3 V4571
VICCommon-mode input voltage rangeCAON = 12.2 V, 3 V0VCC – 1V
V(Ref025)(Voltage at 0.25 VCC node) ÷ VCCPCA0 = 1, CARSEL = 1, CAREF = 1,
No load at P2.3/CA0/TA1 and P2.4/CA1/TA2		2.2 V, 3 V0.230.240.25
V(Ref050)(Voltage at 0.5 VCC node) ÷ VCCPCA0 = 1, CARSEL = 1, CAREF = 2,
No load at P2.3/CA0/TA1 and P2.4/CA1/TA2		2.2 V, 3 V0.470.480.5
V(RefVT)See Figure 8-35 and Figure 8-36PCA0 = 1, CARSEL = 1, CAREF = 3,
No load at P2.3/CA0/TA1 and P2.4/CA1/TA2, TA = 85°C		2.2 V390480540mV
3 V400490550
V(offset)Offset voltage(3)2.2 V, 3 V–3030mV
VhysInput hysteresisCAON = 12.2 V, 3 V00.71.4mV
t(response)Response time, low to high and high to low(4)
(see Figure 8-32 and Figure 8-33)		TA = 25°C, Overdrive 10 mV,
Without filter: CAF = 0		2.2 V80165300ns
3 V70120240
TA = 25°C, Overdrive 10 mV,
With filter: CAF = 1		2.2 V1.41.92.8µs
3 V0.91.52.2
(1) The leakage current for the Comparator_A+ terminals is identical to Ilkg(Px.y) specification.
(2) Also see Figure 8-34 and Figure 8-37.
(3) The input offset voltage can be cancelled by using the CAEX bit to invert the Comparator_A+ inputs on successive measurements. The two successive measurements are then summed together.
(4) The response time is measured at P2.2/CAOUT/TA0/CA4 with an input voltage step and with Comparator_A+ already enabled (CAON = 1). If CAON is set at the same time, a settling time of up to 300 ns is added to the response time.
GUID-4408FC6A-1656-4793-A36C-C9E63674F417-low.gifFigure 8-32 Comparator_A+ Module Block Diagram
GUID-E83E523B-3B45-4229-B489-AB6AD43CB042-low.gifFigure 8-33 Overdrive Definition

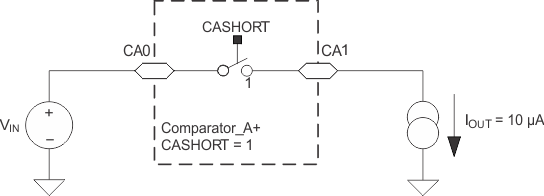

GUID-996BB330-0072-4FA9-8A44-C194BCFE81E5-low.gifFigure 8-34 Comparator_A+ Short Resistance Test Condition
