8.32 Typical Characteristics – LFXT1 Oscillator in HF Mode (XTS = 1)

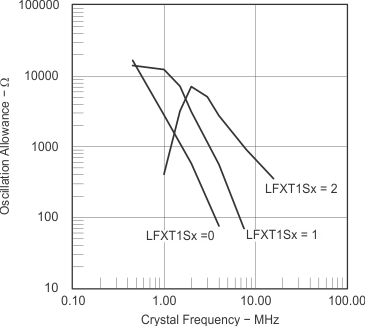

GUID-749F30AE-2F30-47F2-BA69-789EED11CAC9-low.gifFigure 8-23 Oscillation Allowance vs Crystal Frequency
CL,eff = 15 pF, TA = 25°C

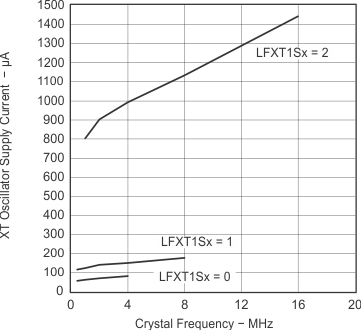

GUID-C39C7829-4822-48CC-82FD-94504B6DF116-low.gifFigure 8-24 Oscillator Supply Current vs Crystal Frequency
CL,eff = 15 pF, TA = 25°C
