8.14 Typical Characteristics – Outputs

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

GUID-87885636-E7D3-4216-BE3E-93D397EDDF0F-low.gifFigure 8-5 Low-Level Output Current vs Low-Level Output Voltage

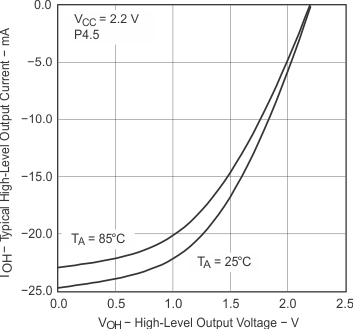

GUID-2F1A2A6F-D09F-4A9C-9B23-5E7B1F41CD04-low.gifFigure 8-7 High-Level Output Current vs High-Level Output Voltage

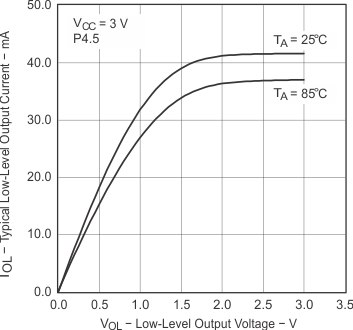

GUID-E313B41C-553C-4600-B90E-46070CB3A016-low.gifFigure 8-6 Low-Level Output Current vs Low-Level Output Voltage

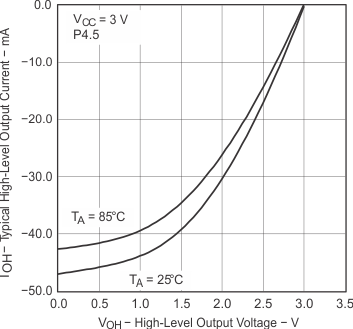

GUID-E97DA470-E71C-4BD8-A3EC-4720B8B3F8A1-low.gifFigure 8-8 High-Level Output Current vs High-Level Output Voltage
