8.28 Typical Characteristics – DCO With External Resistor ROSC

GUID-106922C1-696F-4902-B117-6AC583B626BE-low.gifFigure 8-19 DCO Frequency vs ROSC
(VCC = 2.2 V, TA = 25°C)
GUID-2F4692C7-8374-42FA-A095-9C8AAE2C5431-low.gifFigure 8-21 DCO Frequency vs Temperature
(VCC = 3 V)
GUID-15E6AB80-B78F-47DF-B4BB-01956D980C18-low.gifFigure 8-20 DCO Frequency vs ROSC
(VCC = 3 V, TA = 25°C)

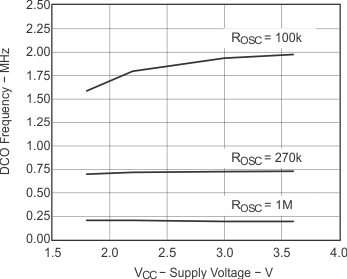

GUID-8BE8AAD8-176C-4F21-9F27-ADA8CBADD873-low.gifFigure 8-22 DCO Frequency vs Supply Voltage
(TA = 25°C)
