8.42 Typical Characteristics – Comparator_A+

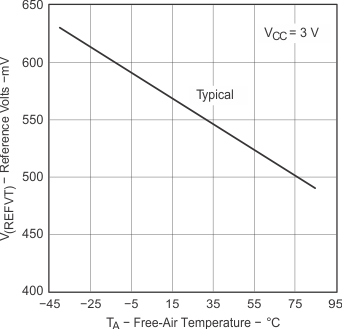

GUID-83EF23DC-427A-46FE-9554-8402BA9ADB36-low.gifFigure 8-35 V(RefVT) vs Temperature
(VCC = 3 V)
GUID-E73DABA9-8BB9-48C0-8905-69BE30F51A04-low.gifFigure 8-37 Short Resistance vs VIN/VCC

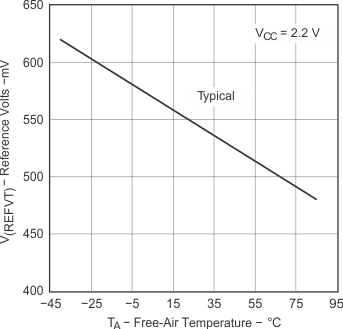

GUID-EEE7A9FF-5C21-4DE5-A0DF-C1624B5C1F03-low.gifFigure 8-36 V(RefVT) vs Temperature
(VCC = 2.2 V)
