B.29 MSP-TS430PN80

For MSP430F47x and MSP430FG47x devices:
Connect pins 7 and 10 (GND) externally to DVSS (see data sheet).
Connect load capacitance on Vref pin 60 when SD16 is used (see data sheet).
For use of BSL: connect pin 1 of BOOST to pin 58 of U1 and pin 3 of BOOST to pin 57 of U1.
Figure 4-58 MSP-TS430PN80 Target Socket Module, Schematic

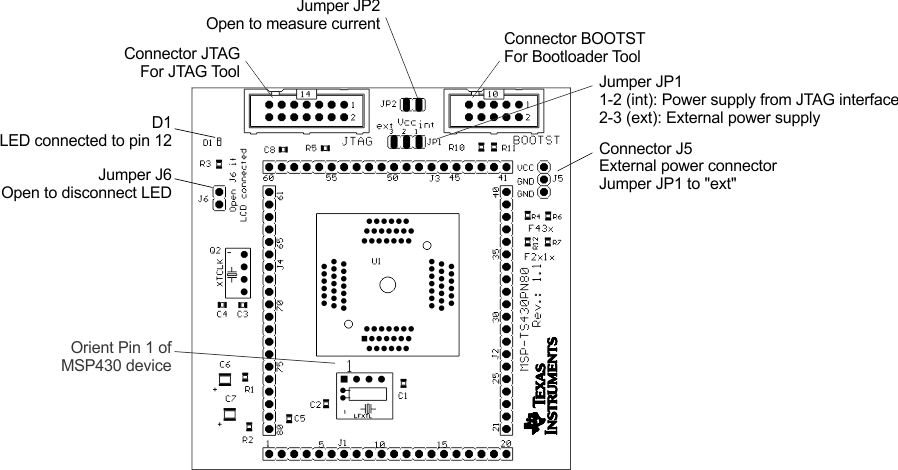

GUID-7CD64D18-1FCB-4580-9EB4-B551D66B2654-low.gif Figure 4-59 MSP-TS430PN80 Target Socket Module, PCB
Table 4-30 MSP-TS430PN80 Bill of Materials
Pos.Ref DesNo. per BoardDescriptionDigi-Key Part No.Comment
1C1, C2012pF, SMD0805DNP: C1, C2
1.1C3, C4047pF, SMD0805DNP: Only recommendation. Check your crystal spec.
2C6, C7110uF, 10V, Tantal Size B511-1463-2-ND
3C51100nF, SMD0805478-3351-2-ND
4C8110nF, SMD0805478-1383-2-ND
5D11green LED, SMD0603475-1056-2-ND
6J1, J2, J3, J4025-pin header, THDNP: Headers and receptacles enclosed with kit.Keep vias free of solder.
SAM1029-20-ND: Header
SAM1213-20-ND: Receptacle
7J5, JP123-pin header, male, THSAM1035-03-ND
8J6, JP222-pin header, male, THSAM1035-02-NDPlace jumper on header
93Jumper15-38-1024-NDPlace on: J6, JP2, JP1/Pos1-2
10JTAG114-pin connector, male, THHRP14H-ND
11BOOTST010-pin connector, male, THDNP: Keep vias free of solder
12Q1, Q20CrystalQ1: Micro Crystal MS1V-T1K 32.768kHz, C(Load) = 12.5pFDNP: Keep vias free of solder
13R31560 Ω, SMD0805541-560ATR-ND
14R1, R2, R4, R6, R7, R10, R11, R1220 Ω, SMD0805541-000ATR-NDDNP: R4, R6, R7, R10, R11, R12
15R5147k Ω, SMD0805541-47000ATR-ND
16U11Socket: IC201-0804-014Manuf.: Yamaichi
17PCB177 x 77 mm2 layers
18Adhesive Plastic feet4~6mm width, 2mm heightfor example, 3M Bumpons Part No. SJ-5302Apply to corners at bottom side
19MSP4302MSP430FG439IPNDNP: Enclosed with kit supplied by TI
