B.42 MSP-TS430PZ100AUSB

The development board MSP-TS430PZ100AUSB supports the MSP430FG662x and MSP430FG642x flash devices in the 100-pin QFP package. MSP430FG6626IPZ devices are not included in the MSP-TS430PZ100AUSB kit. Free samples can be ordered from www.ti.com/product/MSP430FG6626/samplebuy.

GUID-09704F54-5FF1-4B95-A7E5-B03AD7904B99-low.gif Figure 4-84 MSP-TS430PZ100AUSB Target Socket Module, Schematic

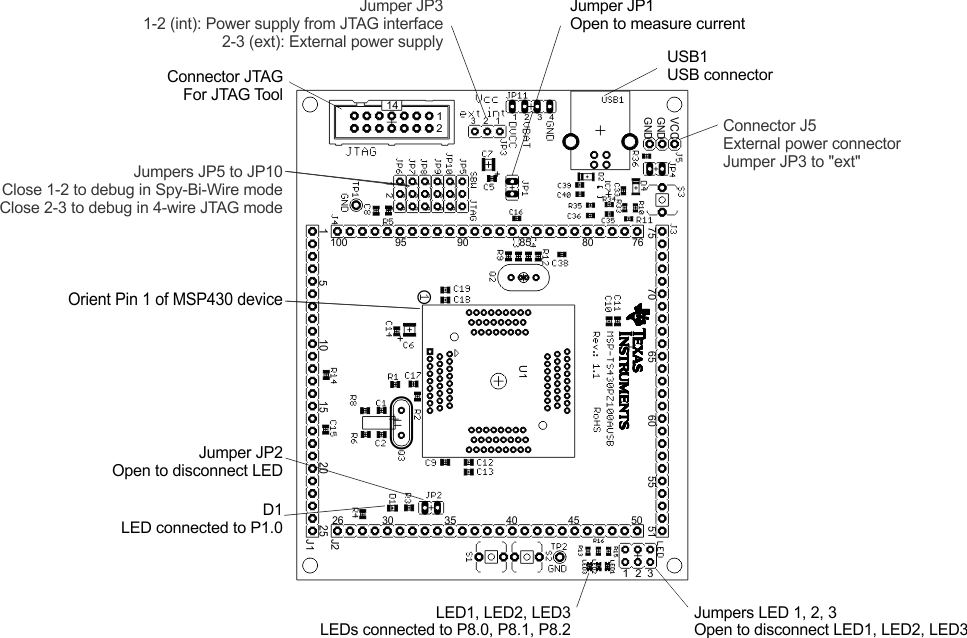

GUID-88D95EA3-FC88-467C-9164-6F9BE331FBD6-low.gifFigure 4-85 MSP-TS430PZ100AUSB Target Socket Module, PCB
Table 4-43 MSP-TS430PZ100AUSB Bill of Materials
Pos.Ref DesNo. Per BoardDescriptionDigi-Key Part No.Comment
1PCB Rev. 1.1199.65mm x 79.54mm2 layers, red solder mask
2C1, C2212pF, SMD0805DNP: C1, C2
3C10, C12, C17, C189100nF, SMD0805311-1245-2-NDDNP: C10, C12,C18, C17
4C15122nF, CSMD0805311-1242-1-ND
5C1614.7 nF SMD0603311-1250-1-ND
6C3, C4247pF, CSMD0805709-1337-1-ND
7C33, C382220n SMD0603Buerklin: 53D2074
8C35, C36210p SMD0603Buerklin: 56D102
9C3914u7 SMD0603Buerklin: 53D2086
10C4010.1u SMD0603Buerklin: 53D2068
11C5, C11, C13, C14, C195100nF, SMD0805311-1245-2-ND
12C6, C7210uF/6.3V, Tantal Size B511-1463-2-ND
13C812.2nF, CSMD0805709-1339-1-ND
14C91470nF, SMD0805478-1403-2-ND
15D11green LED, HSMG-C170 DIODE0805516-1434-1-NDAvago, Farnell 5790852
16D2, D42LL103A, SOD-80Buerklin: 24S3406
17IC71TPD4E004DRYR296-23618-1-NDManu: TI
18J1, J2, J3, J4425-pin header, THSAM1029-25-NDDNP: Headers enclosed in kit. Keep vias free of solder.
19J1, J2, J3, J4425-pin receptacle, THSAM1213-25-NDDNP: Receptacles enclosed in kit. Keep vias free of solder.
20J513-pin header, male, THSAM1035-03-ND
21JP1, JP2, JP432-pin header, male, THSAM1035-02-NDplace jumper on header
22JP1114-pin header, male, THSAM1035-04-NDPlace jumper on Pin 1 and 2
23JP313-pin header, male, THSAM1035-03-NDplace jumper on pins 1-2
24JP5, JP6, JP7, JP8, JP9, JP1063-pin header, male, THSAM1035-03-NDplace jumpers on pins 2-3
25Jumpers for JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8, JP9, JP10, JP1111Jumper15-38-1024-ND
26JTAG114-pin connector, male, THHRP14H-ND
27LED1JP3QESAM1032-03-NDDNP
28LED1, LED2, LED33FARNELL: 852-9833DNP
29MSP4302MSP430FG6626IPZDNP: Free samples can be ordered in the TI Store
30Q21CrystalQ2: 4MHz
Buerklin: 78D134
31Q31MS3V-T1R (32.768kHz/ 20ppm/12.5pF)
32R1, R2, R430 Ohm, SMD0805541-0.0ATR-ND
33R101100R, R0603541-100GCT-ND
34R1111M, R0603541-1.0MGCT-ND
35R13, R15, R163470R SMD0603Buerklin: 07E564DNP
36R1410 Ohm, SMD0805541-0.0ATR-ND
37R31330 Ohm, SMD0805541-330ATR-ND
38R3311k4 / 1k5 SMD0603Buerklin: 07E612
39R34, R35227R SMD0603Buerklin: 07E444
40R36133k SMD0603Buerklin: 07E740
41R5147k Ohm, SMD0805541-47000ATR-ND
42R6, R8, R9, R1240 Ohm, SMD0805541-000ATR-NDDNP
43S1, S21PBP12225STB-ND     DNP
44S31PBP12225STB-ND
45TP1, TP22Test pointDNP, Keep vias free of solder
46U11Socket: IC357-1004-53NManuf.: Yamaichi
47USB11USB ReceptacleFARNELL: 117-7885
48Insulating disk for Q21Insulating disk for Q2ettinger.de 70.08.121
49Rubber stand off4Buerklin: 20H1724Apply to corners at bottom side
