B.13 MSP-TS430DA38

GUID-1527B929-B216-4041-BFE2-6A3E78EA0643-low.gif Figure 4-26 MSP-TS430DA38 Target Socket Module, Schematic

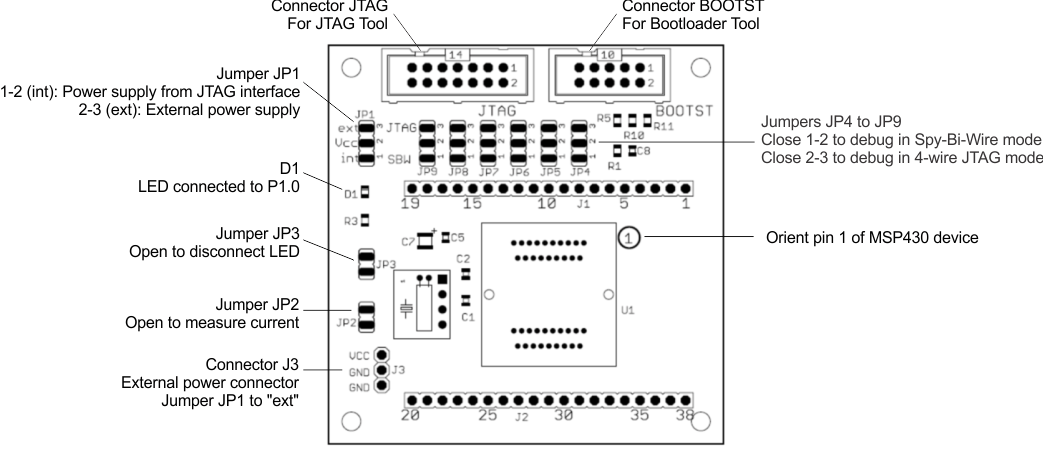

GUID-C45898EC-B053-4A12-B03B-5D1C48ED1626-low.gif Figure 4-27 MSP-TS430DA38 Target Socket Module, PCB
Table 4-14 MSP-TS430DA38 Bill of Materials
Pos.Ref DesNo. per BoardDescriptionDigi-Key Part No.Comment
1C1, C2012pF, SMD0805DNP
2C7110uF, 10V, Tantal Size B511-1463-2-ND
3C51100nF, SMD0805478-3351-2-ND
4C802.2nF, SMD0805DNP
5D11green LED, SMD0603475-1056-2-ND
6J1, J2019-pin header, THDNP: headers and receptacles enclosed with kit.Keep vias free of solder.
SAM1029-19-ND: Header
SAM1213-19-ND: Receptacle
7"J3, JP1, JP4, JP5, JP6, JP7, JP8, JP9"83-pin header, male, THSAM1035-03-NDPlace jumpers on headers JP1, JP4,JP5, JP6, JP7, JP8, JP9; Pos 1-2
8JP2, JP322-pin header, male, THSAM1035-02-NDPlace jumper on header
99Jumper15-38-1024-NDPlace on: JP1 - JP9; Pos 1-2
10JTAG114-pin connector, male, THHRP14H-ND
11BOOTST010-pin connector, male, THDNP: Keep vias free of solder
12Q10CrystalMicro Crystal MS1V-T1K 32.768kHz, C(Load) = 12.5pFDNP: Keep vias free of solder
13R1, R32330 Ω, SMD0805541-330ATR-ND
14R10, R1100 Ω, SMD0805541-000ATR-NDDNP
15R5147k Ω, SMD0805541-47000ATR-ND
16U11Socket: IC189-0382--037Manuf.: Yamaichi
17PCB167 x 66 mm2 layers
18Adhesive Plastic feet4~6mm width, 2mm heightfor example, 3M Bumpons Part No. SJ-5302Apply to corners at bottom side
19MSP4302MSP430F2274IDADNP: enclosed with kit supplied by TI
