B.1 MSP-TS430D8

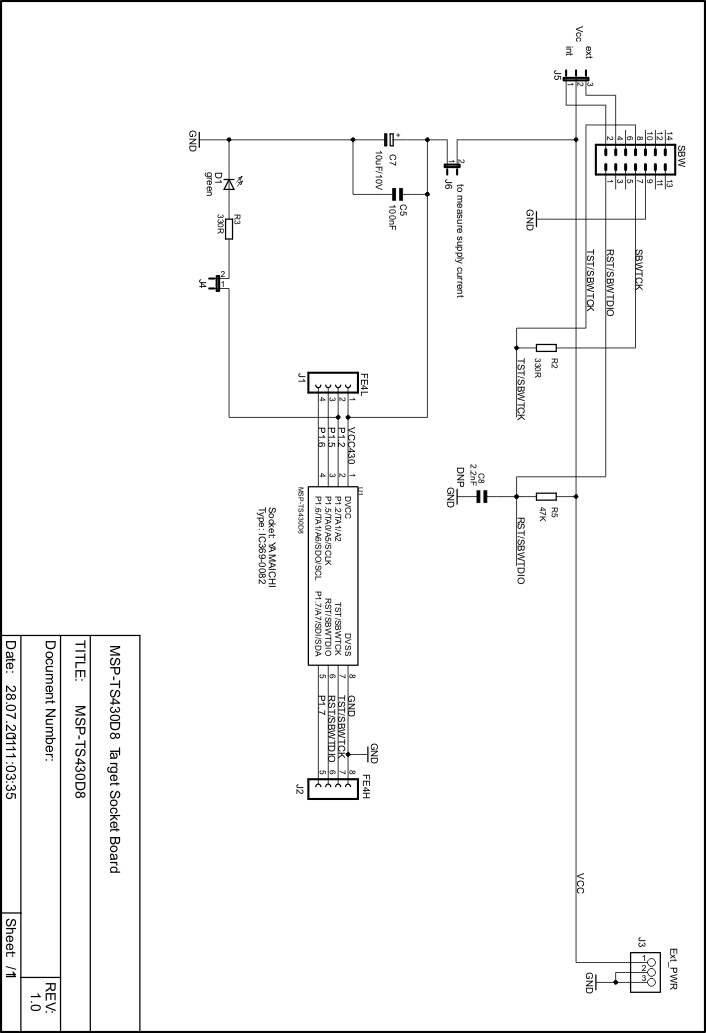

GUID-76EF6197-2F66-495B-B391-40E859CCAF3C-low.gif Figure 4-1 MSP-TS430D8 Target Socket Module, Schematic
GUID-9D5ED372-D26E-4BAA-AA55-51559A3BB5D4-low.gif Figure 4-2 MSP-TS430D8 Target Socket Module, PCB
Table 4-1 MSP-TS430D8 Bill of Materials
PositionRef DesNo. per BoardDescriptionDigi-Key Part No.Comment
1J4, J622-pin header, male, THSAM1035-02-NDplace jumper on header
2J513-pin header, male, THSAM1035-03-NDplace jumper on pins 1-2
3SBW110-pin connector, male, THHRP10H-ND
4J313-pin header, male, THSAM1035-03-ND
5C812.2nF, CSMD0805Buerklin 53 D 292
6C7110uF, 10V, 1210ELKO478-3875-1-ND
7R5147K, 0805541-47000ATR-ND
8C51100nF, CSMD0805311-1245-2-ND
9R2, R32330R, 0805541-330ATR-ND
10J1, J224-pin header, THSAM1029-04-NDDNP: headers enclosed with kit. Keep vias free of solder.
10,1J1, J214-pin socket, THSAM1029-04-NDDNP: receptacles enclosed with kit.
11U11SO8 Socket: Type IC369-0082Manuf.: Yamaichi
12D11red, LED 0603
13MSP4302MSP430G2210, MSP430G2230DNP: enclosed with kit. Is supplied by TI
14PCB150,0mmx44,5mmMSP-TS430D8 Rev. 1.0
