B.25 MSP-TS430PM64F

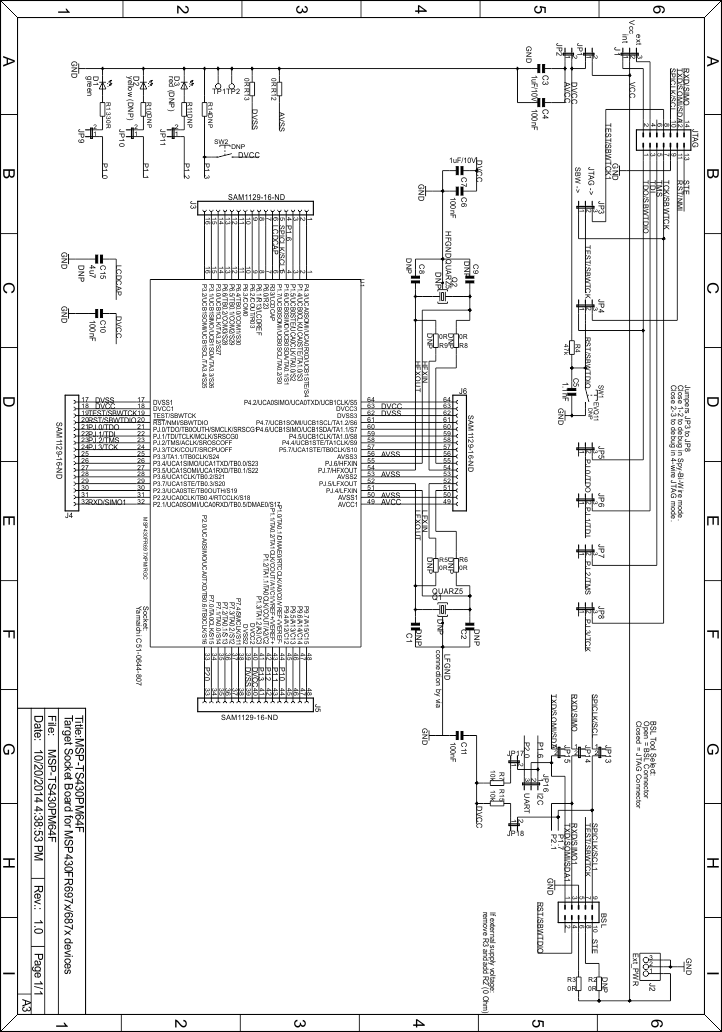

GUID-22D84B76-E419-44D1-9752-D5BEE893D038-low.gifFigure 4-50 MSP-TS430PM64F Target Socket Module, Schematic
GUID-704C37A4-A737-4F58-ABD2-C4B5507C09D7-low.gifFigure 4-51 MSP-TS430PM64F Target Socket Module, PCB
Table 4-26 MSP-TS430PM64F Bill of Materials (BOM)
Pos.Ref DesNumber per BoardDescriptionDigiKey Part NumberComment
1PCB190.0 x 92.5 mmMSP-TS430PM64F Rev. 1.02 layers, purple solder mask
2JP1, JP2, JP9, JP13, JP14, JP15,62-pin header, male, THSAM1035-02-NDplace jumper on header
3JP17, JP1822-pin header, male, THSAM1035-02-NDplace jumper on header's pin1 only
4JP10, JP1122-pin header, male, THSAM1035-02-NDDNP, keep pads free of solder
5J113-pin header, male, THSAM1035-03-NDplace jumpers on pins 1-2
6JP3, JP4, JP5, JP6, JP7, JP8, JP1673-pin header, male, THSAM1035-03-NDplace jumpers on pins 2-3
7J213-pin header, male, THSAM1035-03-ND
8R2, R5, R6, R8, R950R, 0805541-0.0ATR-NDDNP
9R3, R12, R1330R, 0805541-0.0ATR-ND
10C511.1nF, CSMD0805490-1623-2-ND
11C3, C721uF/10V, CSMD0805490-1702-2-ND
12C1514u7, CSMD0805445-1370-1-NDDNP
13R7, R15110k, 0805541-10KATR-ND
14R4147k, 0805541-47KATR-ND
15C4, C6, C10, C114100nF, CSMD0805490-1666-1-ND
16R11330R, 0805541-330ATR-ND
17R10, R112330R, 0805541-330ATR-NDDNP
18R14147k, 0805541-47KATR-NDDNP
19C1, C2, C8, C94DNP, CSMD0805DNP
20SW21EVQ-11L05RP8079STB-NDDNP, Lacon: 1251459
21SW11EVQ-11L05RP8079STB-NDDNP, Lacon: 1251459
22J3, J4, J5, J6416-pin header, THSAM1029-16-NDDNP: headers enclosed with kit. Keep vias free of solder.
23J3, J4, J5, J6416-pin receptacle, THSAM1213-16-NDDNP: receptacles enclosed with kit. Keep vias free of solder.
24TP1, TP22TestpointDNP, keep pads free of solder
25BSL110-pin connector, male, THHRP10H-ND
26JTAG114-pin connector, male, THHRP14H-ND
27U11Socket:IC51-0644-807Manuf. Yamaichi
28U12MSP430FR6972IPMRDNP: enclosed with kit.
Is supplied by TI.
29Q11DNP: MS3V-TR1 (32,768kHz/ 20ppm/12,5pF)depends on applicationMicro Crystal, DNP, enclosed in kit, keep vias free of solder
30Q21DNP, Crystaldepends on applicationDNP, keep vias free of solder
31D11green LED, HSMG-C170 DIODE0805516-1434-1-NDAvago, Farnell 5790852
32D31red (DNP), DIODE0805DNP
33D21yellow (DNP), DIODE0805DNP
34Rubber stand off4Buerklin: 20H1724apply to corners at bottom side
