3.8 Clipper

The Clipper, shown below in Figure 3-18, can be used to achieve digitally the specified THD levels without voltage clipping. It allows users to achieve the same THD (for example, 10% THD) for different power levels (15W, 10W, 5W) with same PVCC level.

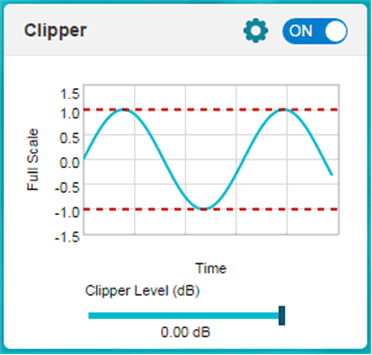

Clipper Figure 3-18 Clipper
    Clipper Leve (dB) The Clipper Level controls the signal level at which clipping occurs.
    Makeup Gain (dB) The Makeup Gain sets additional gain steps from –110dB to 6dB.
