5.6 Timing Diagrams

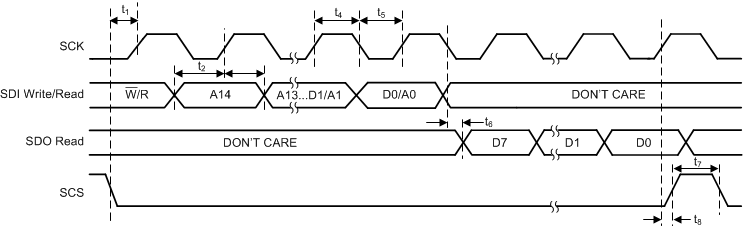

LMK05028 SPI Timing ParametersFigure 5-1 SPI Timing Parameters

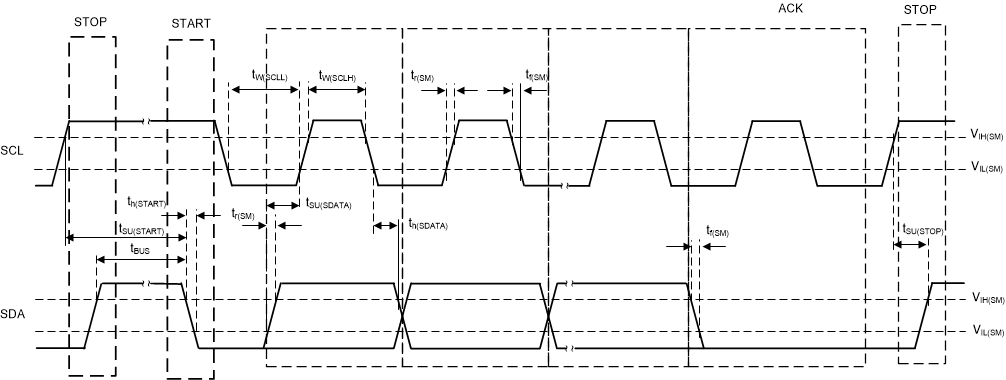

LMK05028 I2C Timing DiagramFigure 5-2 I2C Timing Diagram
LMK05028 Differential Output Voltage and Rise/Fall TimeFigure 5-3 Differential Output Voltage and Rise/Fall Time

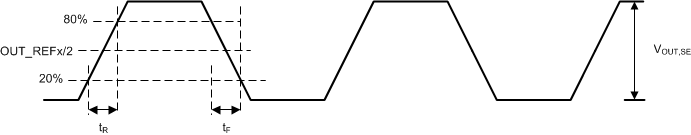

LMK05028 Single-Ended Output Voltage and Rise/Fall TimeFigure 5-4 Single-Ended Output Voltage and Rise/Fall Time
LMK05028 Differential and Single-Ended Output Skew and Phase OffsetFigure 5-5 Differential and Single-Ended Output Skew and Phase Offset
