7.3.4 Clock Input Interfacing and Termination

Figure 7-11 through Figure 7-18 show the recommended input interfacing and termination circuits. Unused clock inputs can be left floating or pulled down.

LMK05028 Single-Ended LVCMOS to XO Input (XO_P)Figure 7-11 Single-Ended LVCMOS to XO Input (XO_P)

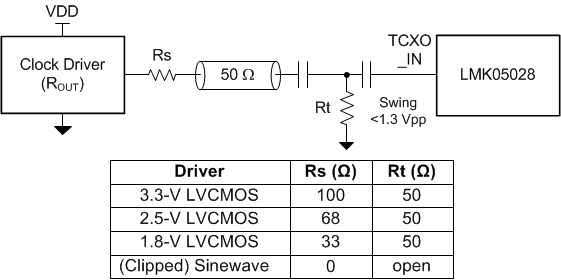

LMK05028 Single-Ended LVCMOS or Sinewave to TCXO Input (TCXO_IN)Figure 7-12 Single-Ended LVCMOS or Sinewave to TCXO Input (TCXO_IN)

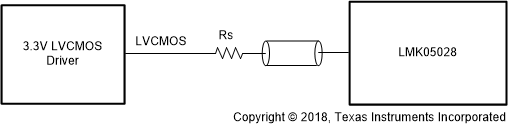

LMK05028 Single-Ended LVCMOS (1.8, 2.5, 3.3 V) to Reference (INx_P)Figure 7-13 Single-Ended LVCMOS (1.8, 2.5, 3.3 V) to Reference (INx_P)

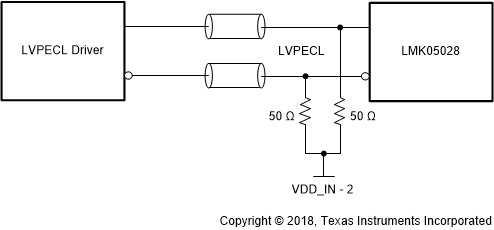

LMK05028 DC-Coupled LVPECL to Reference (INx) or XO InputsFigure 7-14 DC-Coupled LVPECL to Reference (INx) or XO Inputs

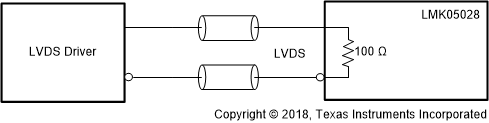

LMK05028 DC-Coupled LVDS to Reference (INx) or XO InputsFigure 7-15 DC-Coupled LVDS to Reference (INx) or XO Inputs

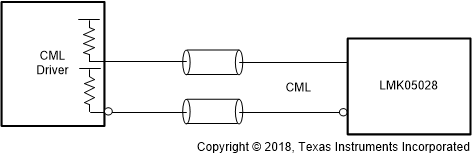

LMK05028 DC-Coupled CML (Source Terminated) to Reference (INx) or XO InputsFigure 7-16 DC-Coupled CML (Source Terminated) to Reference (INx) or XO Inputs

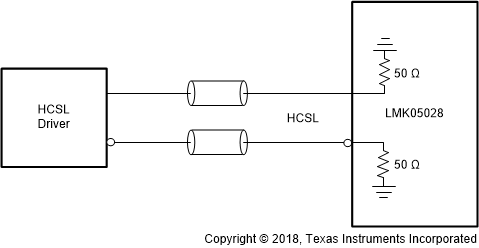

LMK05028 HCSL (Load Terminated) to Reference (INx) or XO InputsFigure 7-17 HCSL (Load Terminated) to Reference (INx) or XO Inputs
LMK05028 AC-Coupled Differential to Reference (INx) or XO InputsFigure 7-18 AC-Coupled Differential to Reference (INx) or XO Inputs
