Lab 4: Closed Voltage and Current Loop

In this build, the outer voltage loop is closed with the inner current loop closed. The model of the outer voltage loop is derived in Figure 5-41(Note that TIDM-02013 is a 2 phase interleaved TTPLPFC). A PI-based compensator is used and tuned through the compensation designer for the outer voltage loop.

Figure 5-41 shows the software diagram for this build.

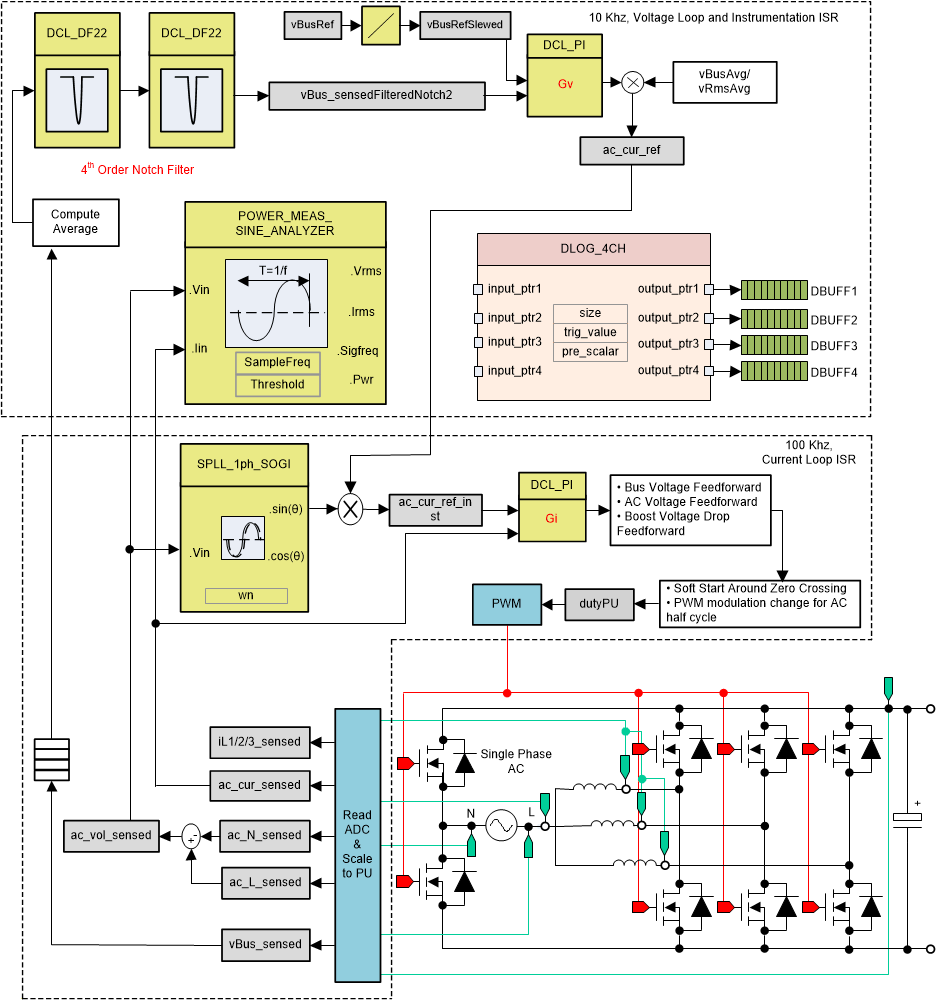

GUID-5D21DD99-BD53-4D4D-9154-CCD6677CC28F-low.gifFigure 5-41 Build Level 4 Control Diagram: Output Voltage Control With Inner Current Loop
