9.1.4 Recommended MOSC Crystal Oscillator Configuration

Figure 9-4 shows a recommended crystal oscillator configuration.

It is assumed that the external crystal oscillator will stabilize within 50ms after stable power is applied.

Table 9-1 Crystal Port Characteristics
PARAMETERNOMINALUNIT
MOSC-to-GND capacitance1.5pF
MOSCZ-to-GND capacitance1.5pF
Table 9-2 Recommended Crystal Configuration (1)
PARAMETERRECOMMENDEDUNIT
Crystal circuit configurationParallel resonant
Crystal typeFundamental (first harmonic)
Crystal nominal frequency20MHz
Crystal temperature stability± 30PPM
Crystal frequency tolerance (including accuracy, temperature, aging, and trim sensitivity)± 100PPM
Crystal equivalent series resistance (ESR)50 maxΩ
Crystal load20pF
Crystal shunt load7 maxpF
RS drive resistor (nominal)100Ω
RFB feedback resistor (nominal)1MΩ
CL1 external crystal load capacitor (MOSC)See Equation 1pF
CL2 external crystal load capacitor (MOSCN)See Equation 2pF
PCB layoutA ground isolation ring around the crystal is recommended
(1) Typical drive level with the XSA020000FK1H-OCX crystal (ESRmax = 40Ω) = 50µW
Equation 1. CL1 = 2 × (CL – CStray-MOSC)
Equation 2. CL2 = 2 × (CL – CStray-MOSCN
Equation 3.

where

  • CL = Crystal load capacitance (Farads)
  • CStray-MOSC = Sum of package and PCB capacitance at the crystal pin associated with controller signal MOSC.
  • CStray-MOSCN = Sum of package and PCB capacitance at the crystal pin associated with controller signal MOSCN.

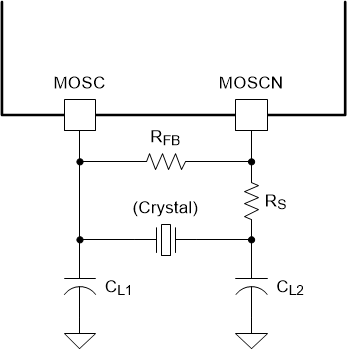

DLPC900 Crystal Oscillator ConfigurationFigure 9-4 Crystal Oscillator Configuration
