6.3.14.3 SMBus™ Message Formats

TPS1689 supports the following SMBus message formats.

Note: All these commands can be used with or without the optional PEC byte.
TPS1689 Send ByteFigure 6-8 Send Byte
TPS1689 Receive ByteFigure 6-9 Receive Byte
TPS1689 Write ByteFigure 6-10 Write Byte
TPS1689 Read ByteFigure 6-11 Read Byte
TPS1689 Write WordFigure 6-12 Write Word

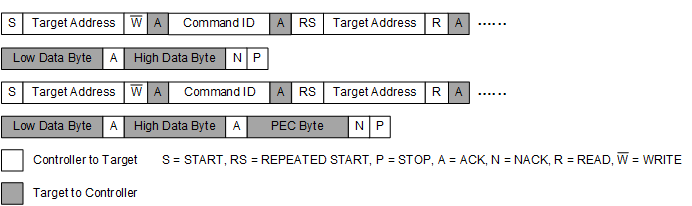

TPS1689 Read WordFigure 6-13 Read Word
TPS1689 Block ReadFigure 6-14 Block Read
