DLP® LightCrafter™ Evaluation Module

(ACTIVE) DLPLIGHTCRAFTER

Description & Features

Technical Documents

Support & Community

Order Now


Key Document
Download - PDF Icon

Description

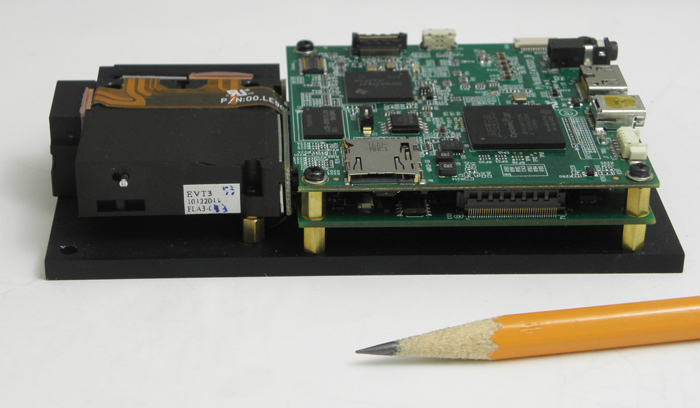

DLP® LightCrafter™ is a compact evaluation module for integrating projected light into industrial, medical, and scientific applications. This DLP-based platform enables faster development cycles for end equipments requiring small form factor, lower cost and intelligent, high-speed pattern display. DLP LightCrafter features the 0.3 WVGA chipset, provides a variety of embedded functionality such as: structured light pattern projection, intelligent lighting, wavelength selection and portable display.

Developers can easily create, store, and display high-speed pattern sequences through DLP LightCrafter's USB-based application programming interface (API) and easy-to-use graphical user interface (GUI). The module also features the powerful TMS320DM365 digital media processor based on DaVinci technology from Texas Instruments. With an ARM9 DSP core, DLP LightCrafter's DM365 runs a Linux operating system to give users the ability to develop a complete embedded system around the 0.3 WVGA chipset. A configurable input/output trigger allows for convenient synchronization with cameras, sensors, or other peripheral devices.

The DLP LightCrafter includes an RGB LED light engine developed and manufactured by Young Optics International. Designed specifically for the DLP3000 DMD, this light engine produces bright, wide aspect ratio patterns well-suited for use in a variety of ambient light environments. For applications where even higher brightness is required, active cooling and thermal management systems can be added to enable light out in excess of 50 lumens.

Features



  • RGB LED light engine with 20L light output
  • High speed patterns using the native DLP3000 resolution (608 x 684)
    • Up to 4000 Hz binary pattern rate
    • Up to 120 Hz 8-bit grayscale pattern rate
  • Display images or video up to WVGA resolution (854 x 480)
  • Configurable I/O trigger for synchronizing with cameras, sensors, etc
  • DM365 embedded processor running embedded Linux
  • 128MB NAND flash memory for pattern and sequence storage
  • USB, Mini HDMI, UART interfaces
  • USB-based API and host GUI
  • Compact size: 117mm x 65mm x 23mm




What's Included

  • DLP 0.3 WVGA chipset
  • RGB LED light engine
  • DMD controller board
  • Processor and interface board
  • Embedded Linux OS

Cables and power supply sold separately. Order power supply here.

Available Versions

Texas Instruments provides free software and firmware downloads to give developers flexibility and advanced control of the DLP LightCrafter EVM. In addition, the software and design documentation allows customers to develop custom products based on the 0.3 WVGA chipset included in DLP LightCrafter faster. To promote proper functionality, please do not combine software and firmware from different release versions.

DLP LightCrafter Firmware and Software Bundle: This bundle contains a mixture of software associated with the DLP LightCrafter EVM. It includes the DM365, FPGA, MSP430, and EDID object code loaded onto the EVM, as well as the MSP430 source code. In addition, this software bundle includes the PC-based Graphical User Interface (GUI) for easy communication with DLP LightCrafter and an sample code for using the USB-based DLP LightCrafter API. There are several versions of this software available, and users should take care to ensure that software or firmware from different releases are not interchanged. Release versions 2.0 and 1.1 are compatible with DLP LightCrafter modules that have a “Version 2.0” sticker indicating newer hardware with improved USB connectivity. Release version 1.0 is intended for use with Version 1.0 modules (no sticker).

DLP LightCrafter EVM Reference Design: This reference design includes schematics, Gerber layout files, bill of materials, and baseplate mechanical ICD for the DLP LightCrafter EVM.

DLP LightCrafter DM365 DVSDK: The Linux™ Digital Video Software Development Kit (DVSDK) for TMS320DM365 has been modified for use with DLP® LightCrafter™ Development Module. This release supports only Ubuntu 10.04 LTS 32-bit as the development host.

DLP LightCrafter MBMC Parser Tool: This tool allows users to split input patterns into 1-bit depth sub-patterns for use with Multi-Bit depth, Multi-Color (MBMC) pattern sequences. For more information about using this tool or MBMC pattern sequences, please visit the DLP LightCrafter E2E forum.

DLP LightCrafter GUI Source Code: This software includes the source code files for the PC-based Graphical User Interface (GUI) for easy communication with DLP LightCrafter. The source files were developed using the QT Library (Windows, Mac, Linux) and the QT Creator.

Description Status Version Version Date Download
Sort Ascending  Sort Descending Sort Ascending  Sort Descending Sort Ascending  Sort Descending Sort Ascending  Sort Descending Sort Ascending  Sort Descending
  DLP LightCrafter Firmware and Software Bundle - Linux     Active     3.0     12/19/2013     Linux
  DLP LightCrafter Firmware and Software Bundle - Mac     Active     3.0     12/18/2013     Mac
  DLP LightCrafter Firmware and Software Bundle - Windows     Active     3.0     12/5/2013     Windows
  DLP LightCrafter DM365 DVSDK     Active     5.0     12/18/2013     Linux
  DLP LightCrafter MBMC Parser Tool     Active     1.0     5/10/2013     Windows
  DLP LightCrafter EVM Reference Design     Active     2.0     10/09/2012     Windows
  DLP LightCrafter DM365 DVSDK     NRND     4.0     8/26/2013     Linux
  DLP LightCrafter GUI Source Code     NRND     4.0.1     7/19/2013     Windows
  DLP LightCrafter Firmware and Software Bundle - Windows     NRND     2.0.1     6/14/2013     Windows
  DLP LightCrafter Firmware and Software Bundle - Linux     NRND     2.0.1     6/14/2013     Linux
  DLP LightCrafter Firmware and Software Bundle - Mac     NRND     2.0.1     6/14/2013     Mac
  DLP LightCrafter MSP430 Source Code     NRND     1.0     1/10/2013     Windows
  DLP LightCrafter Firmware and Software Bundle     NRND     1.1     11/08/2012     Windows
  DLP LightCrafter Firmware and Software Bundle     NRND     1.0     1/23/2012     Windows

Order Now
Part Number Buy from Texas Instruments or Third Party Buy from authorized distributors Status

DLPLIGHTCRAFTER:
DLP® LIGHTCRAFTER™ Evaluation Module

$599.00(USD)




Pricing may vary.



ACTIVE
Contact a Distributor

TI's Standard Terms and Conditions for Evaluation Modules apply.

Technical Documents
Datasheet (1)
Title Abstract Type Size (KB) Date Views
PDF 1446 27 Oct 2014
Errata (2)
Title Abstract Type Size (KB) Date Views
PDF 27 23 Dec 2013 0
PDF 19 16 Aug 2012 0
Application notes (3)
Title Abstract Type Size (KB) Date Views
PDF 714 05 Dec 2013 0
PDF 1376 29 Oct 2013 0
PDF 303 27 Aug 2013 0
User guides (2)
Title Abstract Type Size (KB) Date Views TI Recommends
PDF 3477 13 Nov 2014 0
PDF 171 04 Oct 2012 0
Selection guides (2)
Title Abstract Type Size (KB) Date Views
PDF 1157 21 May 2015 0
PDF 3424 02 May 2013 0
White papers (1)
Title Abstract Type Size (KB) Date Views
PDF 1076 14 Mar 2012 0
More literature (1)
Title Abstract Type Size (KB) Date Views
PDF 341 05 May 2015 0

Software (1)

Name Part Number Software Type
DLPC300 Configuration and Support Firmware  DLPR300  Application Software & Frameworks

Reference Designs (1)

Name Part Number Tool Type
DLP 0.3 WVGA Chipset Reference Design  DLP3000-C300REF  Reference Designs

TI Devices (25)

Part Number Name Product Family
DLP3000  DLP 0.3 WVGA DMD  Advanced Light Control
DLPC300  0.3 WVGA Digital Controller  Advanced Light Control
MSP430F2232  16-bit Ultra-Low-Power Microcontroller, 8KB Flash, 512B RAM  Ultra-low Power
SN65C3221  3-V To 5.5-V Multichannel RS-232 Line Driver/Receiver  Interface
SN74AHC1G04  Single Inverter Gate  Logic
SN74AUP1G07  Low-Power Single Buffer/Driver with Open-Drain Outputs  Logic
SN74AUP3G07  Low-Power Triple Inverter Buffer/Driver With Open-Drain Outputs  Logic
SN74AVC4T245  4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs  Voltage Level Translation
SN74LVC1G08  Single 2-Input Positive-AND Gate  Logic
SN74LVC1G66  Single Analog Switch  Logic
SN74LVC1G86  Single 2-Input Exclusive-OR Gate  Logic
SN74LVC2G157  Single 2-Line to 1-Line Data Selector/Multiplexer  Logic
TFP401  PanelBus DVI Receiver 165MHz  Display & Imaging SerDes
TLV1171  1-A, Positive Fixed Voltage, Low-Dropout Regulator  Linear Regulator (LDO)
TLV3491  Single Nanopower Push-Pull Output Comparator  Amplifiers and Linear
TMS320DM365  DaVinci Digital Media Processor  Media Processors
TPS2011  1.2A, 2.7 to 5.5V Single High-Side MOSFET Switch IC, No Fault Reporting, Active-Low Enable  Load Switches
TPS3808G01  Low Quiescent Current, Programmable-Delay Supervisory Circuit  Power Management
TPS60150  140mA, 5V Charge Pump in 2x2 SON  Charge Pump (Inductorless)
TPS62260  2.25MHz 600mA Step-Down Converter in 2x2mm SON/TSOT23 Package  Converter (Integrated Switch)
TPS62400  Dual, Adjustable, 400mA and 600mA, 2.25MHz Step-Down Converter with 1-Wire Interface in QFN   Converter (Integrated Switch)
TPS63020  High Efficiency Single Inductor Buck-Boost Converter with 4A Switch  Converter (Integrated Switch)
TPS65120  4-CH Single Inductor Multiple Outputs (SIMO) Bias IC w/ Fixed 3.3V Vlogic  Power Management
TXS0101  1-Bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Application  Logic
TXS0102  2-Bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Application  Logic
