7.3.8.2.1 Sinc4 Filter

The sinc4 filter performs averaging and decimation of the modulator data to produce data rates up to 1365.3kSPS in max-speed mode, 1066.6kSPS in high-speed mode, 533.3kSPS in mid-speed mode and 133.333kSPS in low-speed mode. Increasing the OSR value decreases the ADC data rate that reduces signal bandwidth and total noise resulting from increased data averaging and decimation.

Table 7-19 lists the sinc4 filter characteristics.

Table 7-3 Sinc4 Filter Characteristics
MODEfCLK
(MHz)		OSR DATA RATE
(kSPS)		–3dB FREQUENCY
(kHz)		LATENCY TIME
(μs)(1)
Max speed32.768121365.3310.23.9
High speed25.61066.6242.35.1
Mid speed12.8533.3
121.210.1
Low speed3.2133.3330.340.5
Max speed32.768161024232.74.9
High speed25.6800181.86.3
Mid speed12.840090.912.6
Low speed3.210022.750.5
Max speed32.76824682.67155.16.9
High speed25.6533.3121.28.9
Mid speed12.8266.6760.617.1
Low speed3.266.6715.170.8
Max speed32.76832512116.38.9
High speed25.640090.911.4
Mid speed12.820045.422.8
Low speed3.25011.491.4
Max speed32.7686425658.216.6
High speed25.620045.421.3
Mid speed12.810022.742.6
Low speed3.2255.68171
Max speed32.76812812829.132.3
High speed25.610022.741.3
Mid speed12.85011.482.6
Low speed3.212.52.84331
Max speed32.7682566414.563.6
High speed25.65011.481.4
Mid speed12.8255.68163
Low speed3.26.251.42651
Max speed32.768512327.27126
High speed25.6255.68162
Mid speed12.812.52.84324
Low speed3.23.1250.7101294
Max speed32.7681024163.64251
High speed25.612.52.84321
Mid speed12.86.251.42643
Low speed3.21.56250.3552570
Max speed32.768204881.82501
High speed25.66.251.42641
Mid speed12.83.1250.7101282
Low speed3.20.78130.1785130
Max speed32.768409640.9091001
High speed25.63.1250.7101281
Mid speed12.81.5630.3552562
Low speed3.20.3910.08910250
(1) Latency time increases by 8 / fCLK (µs) when the analog input buffers are enabled.

Figure 7-18 and Figure 7-19 show the sinc4 frequency response for OSR = 32. The frequency response consists of a series of response nulls occurring at multiples of fDATA with a series of decaying peaks in between. At the null frequencies, the filter has zero gain. A folded image of the filter response appears when fIN/fDATA > OSR/2, as illustrated in the frequency plot of Figure 7-19 for OSR = 32. 0dB attenuation occurs at input frequencies near n × fMOD (n = 1, 2, 3, and so on). If signals are present at these frequencies, the signal is aliased to the pass band.

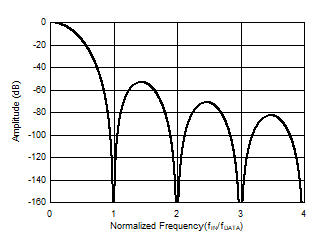

ADS117L14 ADS117L18 Sinc4 Frequency Response (OSR = 32)Figure 7-18 Sinc4 Frequency Response
(OSR = 32)
ADS117L14 ADS117L18 Sinc4 Frequency Response to fMOD (OSR = 32)Figure 7-19 Sinc4 Frequency Response to fMOD (OSR = 32)
