7.4.1.3 Reset by SPI Input Pattern

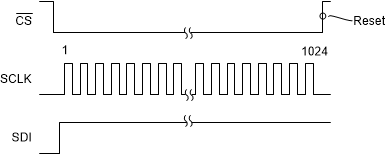

The device is also reset through SPI by a special input pattern. The input pattern does not follow the input command format. To reset, input a minimum of 1024 consecutive ones, followed by taking CS high at which time reset occurs. Figure 7-25 shows the reset pattern.

ADS117L14 ADS117L18 SPI Reset PatternFigure 7-25 SPI Reset Pattern
