SCAS928D May 2012 – April 2019 CDCUN1208LP
PRODUCTION DATA.

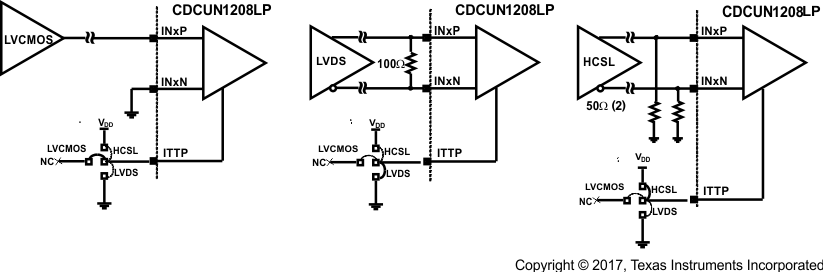

Figure 46 shows how to interface certain common signaling formats to the device inputs of the CDCUN1208LP. This entails both proper signal termination as well as input buffer configuration through the input type (ITTP) pin.
