8.2.1.3 Application Curves

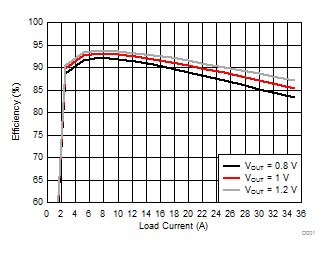

TPS546C23 D033_SLUSCC7.gif
VIN = 5 V L = 300 nH Snubber = 1 nF + 1 Ω
fSW = 300 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 40. Efficiency vs Output Current
TPS546C23 D035_SLUSCC7.gif
VIN = 12 V L = 300 nH Snubber = 1 nF + 1 Ω
fSW = 300 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 42. Efficiency vs Output Current
TPS546C23 D016_SLUSCC7.gif
VIN = 12 V VOUT = 0.9 V
Figure 44. Load Regulation

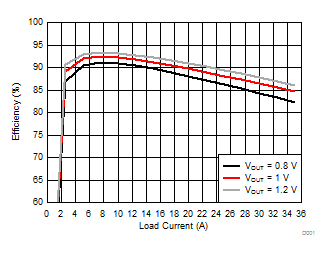

TPS546C23 D034_SLUSCC7.gif
VIN = 5 V L = 300 nH Snubber = 1 nF + 1Ω
fSW = 500 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 41. Efficiency vs Output Current
TPS546C23 D036_SLUSCC7.gif
VIN = 12 V L = 300 nH Snubber = 1 nF + 1Ω
fSW = 500 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 43. Efficiency vs Output Current
TPS546C23 D020_SLUSCC7.gif
VIN = 12 V VOUT = 0.9 V IOUT = 20 A
Figure 45. Total-Loop Bode Plot

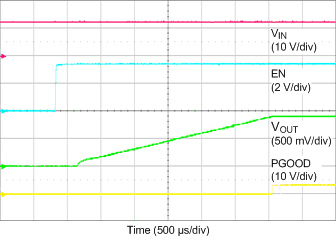

TPS546C23 StrtFrmCNTL.gif
VIN = 12 V VOUT = 0.9 V IOUT = 20 A
Figure 46. Start-Up from CNTL
TPS546C23 0to10ATransRspns.gif
VIN = 12 V VOUT = 0.9 V IOUT = 0 A to 10 A, 2.5 A/µs
Figure 48. Load Transient Response
TPS546C23 PreBiasedStrt.gif
VIN = 12 V IOUT = 0 A
Figure 50. Prebiased Start-Up
TPS546C23 StopFrmCNTL.gif
VIN = 12 V VOUT = 0.9 V IOUT = 20 A
Figure 47. Shutdown from CNTL
TPS546C23 VoutRipple.gif
VIN = 12 V VOUT = 0.9 V IOUT = 20 A
Figure 49. VOUT Steady-State Ripple
TPS546C23 HiccEn.gif
VIN = 12 V IOUT = 0 A to 20 A, 20 A to 0 A
Set OCF = 18 A VOUT = 0.9 V
Figure 51. Hiccup Response
