7 Pin Configuration and Functions

PFP Package
80-PIN TQFP With Thermal Pad
Top View

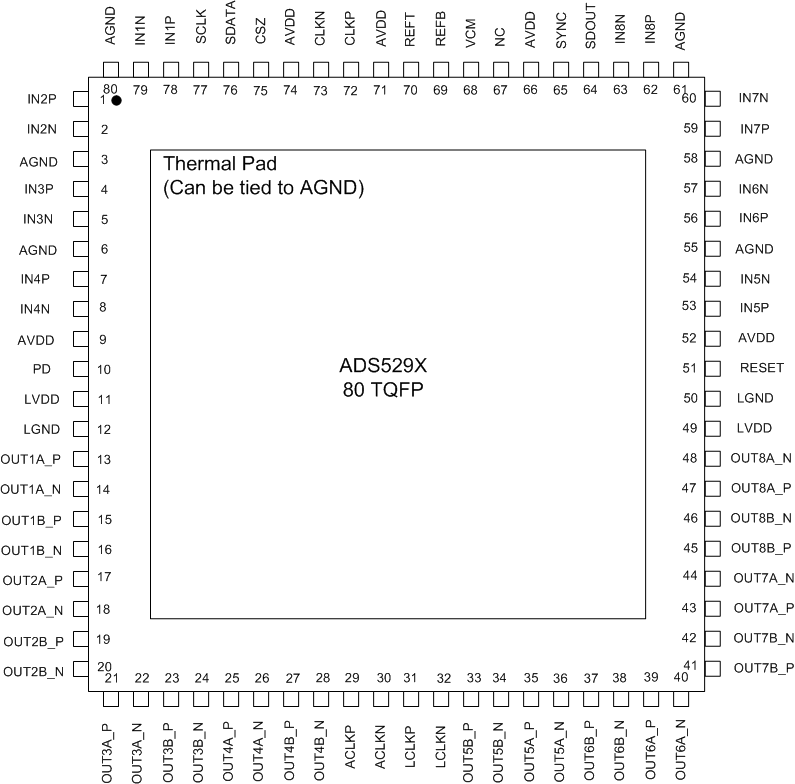

ADS5294 PINOUT.gif

Pin Functions

PIN DESCRIPTION
NAME NO.
AVDD 9, 52, 66, 71, 74 Analog power supply, 1.8 V
AGND 3, 6, 55, 58, 61, 80 Analog ground
VCM 68 Common-mode output pin, 0.95-V output. This pin can be configured as the external reference voltage (1.5 V) input pin as well. See Reg 0x42 and External Reference Mode of Operation.
CLKN 73 Negative differential clock –Tie CLKN to GND for single-ended clock
CLKP 72 Positive differential clock
IN1P, IN1N 78, 79 Differential input signal, Channel 1
IN2P, IN2N 1, 2 Differential input signal, Channel 2
IN3P, IN3N 4, 5 Differential input signal, Channel 3
IN4P, IN4N 7, 8 Differential input signal, Channel 4
IN5P, IN5N 53, 54 Differential input signal, Channel 5
IN6P, IN6N 56, 57 Differential input signal, Channel 6
IN7P, IN7N 59, 60 Differential input signal, Channel 7
IN8P, IN8N 62, 63 Differential input signal, Channel 8
LCLKP, LCLKN 31, 32 Differential LVDS bit clock (7X)
ACLKP, ACLKN 29, 30 Differential LVDS frame clock (1X)
OUT1A_P, OUT1A_N 13, 14 Differential LVDS data output, wire 1, channel 1
OUT1B_P, OUT1B_N 15, 16 Differential LVDS data output, wire 2, channel 1
OUT2A_P, OUT2A_N 17, 18 Differential LVDS data output, wire 1, channel 2
OUT2B_P, OUT2B_N 19, 20 Differential LVDS data output, wire 2, channel 2
OUT3A_P, OUT3A_N 21, 22 Differential LVDS data output, wire 1, channel 3
OUT3B_P, OUT3B_N 23, 24 Differential LVDS data output, wire 2, channel 3
OUT4A_P, OUT4A_N 25, 26 Differential LVDS data output, wire 1, channel 4
OUT4B_P, OUT4B_N 27, 28 Differential LVDS data output, wire 2, channel 4
OUT5A_P, OUT5A_N 35, 36 Differential LVDS data output, wire 1, channel 5
OUT5B_P, OUT5B_N 33, 34 Differential LVDS data output, wire 2, channel 5
OUT6A_P, OUT6A_N 39, 40 Differential LVDS data output, wire 1, channel 6
OUT6B_P, OUT6B_N 37, 38 Differential LVDS data output, wire 2, channel 6
OUT7A_P, OUT7A_N 43, 44 Differential LVDS data output, wire 1, channel 7
OUT7B_P, OUT7B_N 41, 42 Differential LVDS data output, wire 2, channel 7
OUT8A_P, OUT8A_N 47, 48 Differential LVDS data output, wire 1, channel 8
OUT8B_P, OUT8B_N 45, 46 Differential LVDS data output, wire 2, channel 8
PD 10 Power-down control input. Active High. The pin has an internal 220-kΩ pulldown resistor.
REFB 69 Negative reference input and output. Internal reference mode: Reference bottom voltage (0.45 V) is output on this pin. A decoupling capacitor is not required on this pin. External reference mode: Reference bottom voltage (0.45 V) must be externally applied to this pin. Please see External Reference Mode of Operation.
REFT 70 Positive reference input and output. Internal reference mode: Reference top voltage (1.45 V) is output on this pin. A decoupling capacitor is not required on this pin. External reference mode: Reference top voltage (1.45 V) must be externally applied to this pin. Please see External Reference Mode of Operation.
RESET 51 Active HIGH RESET input. The pin has an internal 220-kΩ pulldown resistor.
SCLK 77 Serial clock input. The pin has an internal 220-kΩ pulldown resistor.
SDATA 76 Serial data input. The pin has an internal 220-kΩ pulldown resistor.
SDOUT 64 Serial data readout. This pin is in the high-impedance state after reset. When the <READOUT> bit is set, the SDOUT pin becomes active. SDOUT is a CMOS digital output running from the AVDD supply.
CSZ 75 Serial enable chip select – active-low digital input
SYNC 65 Input signal to synchronize channels and chips when used with reduced output data rates. If it is not used, add a ≤ 10-KΩ pulldown resistor.
LVDD 11, 49 Digital and I/O power supply, 1.8 V
LGND 12, 50 Digital ground
NC 67 No Connection. Must leave floated
