13.4 Daisy Chain Communication

Maintaining signal integrity while in a stacked configuration is critical to the success of this part. To maximize immunity from interfering signals, there are a couple design choices that need to be made. For transformer based communication, be sure to select a transformer that provides adequate isolation.

  1. Keep differential traces as short as possible and as straight as possible. Minimize turns and avoid any looping on the traces.
  2. Keep the differential traces on the same layers. Run the trace in parallel with shielding and matching trace impedance.
  3. Place the isolation components close to the connectors.
  4. When using capacitive isolation, place the high voltage capacitor of the COMxP/N pair (where x = H, L) close to each other along the parallel traces.
  5. Create a keep-out area (no other traces and no ground plane) around the daisy chain components in all PCB layers.

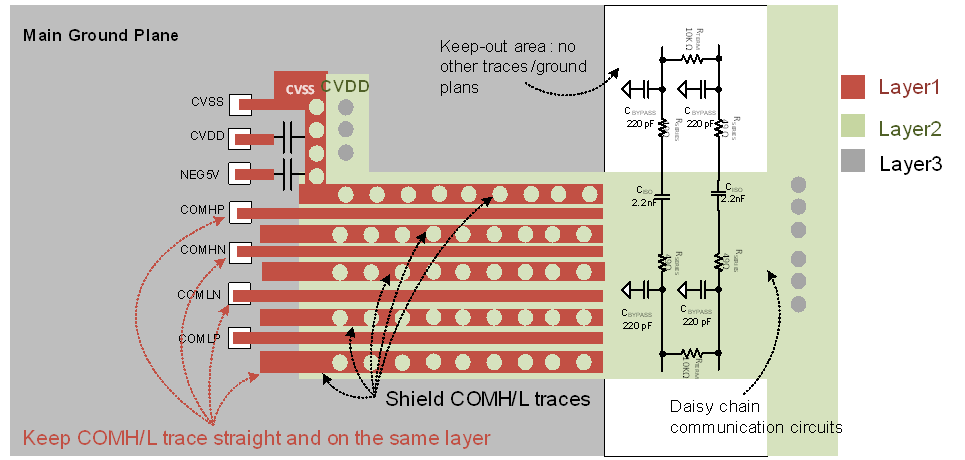

Daisy Chain Layout Considerations
Note: The vias go through all 4 layers. Layer 4 is not shown as the bottom layer can include traces for any bottom side components and a solid ground plane otherwise.
Figure 13-3 Daisy Chain Layout Considerations
