9.1 Application Information

The typical application for a haptic driver is in a touch-enabled system that already has an application processor which makes the decision on when to execute haptic effects.

The DRV2624 device can be used fully with I2C communications (either using RTP or the memory interface). A system designer can chose to use external triggers to play low-latency effects (such as from a physical button). Figure 9-1 and Figure 9-2 show typical haptic system implementations. The system designer should not use the internal regulator (REG) to power any external load.

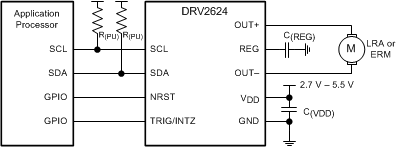

DRV2624 I2C Control with Optional External TriggerFigure 9-1 I2C Control with Optional External Trigger
DRV2624 I2C Control with Optional Interrupt PinFigure 9-2 I2C Control with Optional Interrupt Pin
Table 9-1 Recommended External Components
COMPONENTDESCRIPTIONSPECIFICATIONTYPICAL VALUE
C(VDD)Input capacitorCapacitance0.1 µF
C(REG)Regulator capacitorCapacitance0.1 µF
R(PU)Pull-up resistorResistance2.2 kΩ
