7.6.9.4.1.1 Playback Trigger With Automatic Brake into Standby (SimpleDrive)

If automatic braking into standby is enabled (AUTO_BRK_INTO_STBY bit is set to 1), then the device part goes into brake mode before going into standby. This feature introduces new timing requirements that are described in below diagrams.

DRV2624 Waveform Sequencer with Trigger-PulseFigure 7-19 Waveform Sequencer with Trigger-Pulse

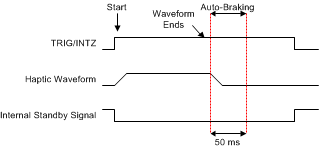

DRV2624 Waveform Sequencer with Trigger-Level Behavior when TRIG/INTZ Pin Left HighFigure 7-21 Waveform Sequencer with Trigger-Level Behavior when TRIG/INTZ Pin Left High
DRV2624 Playback Start and stop Trigger (Pulse) (RTP or Waveform Sequencer)Figure 7-23 Playback Start and stop Trigger (Pulse) (RTP or Waveform Sequencer)
DRV2624 Playback Start and stop Trigger (Internal GO bit) (RTP or Waveform Sequencer)Figure 7-25 Playback Start and stop Trigger (Internal GO bit) (RTP or Waveform Sequencer)

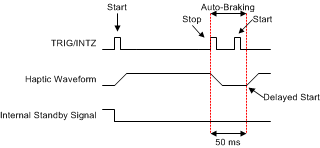

DRV2624 Trigger-Pulse and Delayed Start (RTP or Waveform Sequencer)Figure 7-27 Trigger-Pulse and Delayed Start (RTP or Waveform Sequencer)
DRV2624 GO bit Trigger with Delayed Start (RTP or Waveform Sequencer)Figure 7-29 GO bit Trigger with Delayed Start (RTP or Waveform Sequencer)
DRV2624 Waveform Sequencer with Trigger-LevelFigure 7-20 Waveform Sequencer with Trigger-Level
DRV2624 Fast Start Stop with Trigger-Pulse (RTP or Waveform Sequencer)Figure 7-22 Fast Start Stop with Trigger-Pulse (RTP or Waveform Sequencer)
DRV2624 Playback Start and stop Trigger (Level)(RTP or Waveform Sequencer)Figure 7-24 Playback Start and stop Trigger (Level)(RTP or Waveform Sequencer)

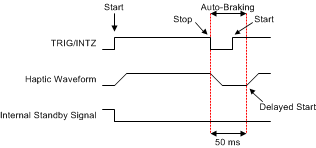

DRV2624 Trigger-Level with Delayed Start (RTP or Waveform Sequencer)Figure 7-26 Trigger-Level with Delayed Start (RTP or Waveform Sequencer)
DRV2624 Trigger-Pulse and Delayed Start with Ignored Pulse (RTP or Waveform Sequencer)Figure 7-28 Trigger-Pulse and Delayed Start with Ignored Pulse (RTP or Waveform Sequencer)
DRV2624 Trigger-Pulse Behavior when TRIG/INTZ Pin Left High (RTP or Waveform Sequencer)Figure 7-30 Trigger-Pulse Behavior when TRIG/INTZ Pin Left High (RTP or Waveform Sequencer)
