7 Current Sense Amplifier Routing

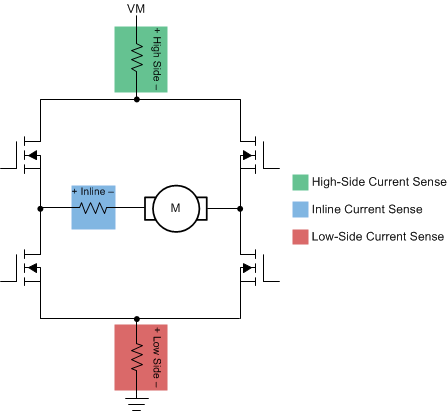

Included with TI’s wide range of motor drivers are devices that feature built-in current sensing, most of which use an external shunt resistor as the measurement source. Including the current sense amplifier with the driver provides an all-in-one solution for the motor interface, and it allows higher-quality current sensing at a lower cost. Figure 7-1 shows all the current sense topologies available.

GUID-83DB4A40-9D66-4DA1-B5C0-662C7BC3BC6E-low.gifFigure 7-1 Current Sense Topologies

The integrated current sense amplifiers (CSAs) built into these devices typically fall into three categories, each with their benefits. These categories are described in the following sections.
