6.2 MOSFET Layout Configurations

Figure 6-6 and Figure 6-7 show common MOSFET placements and layout for two typical configurations; half-bridge stack and half-bridge side-by-side (respectively), for both leaded and non-leaded packages.

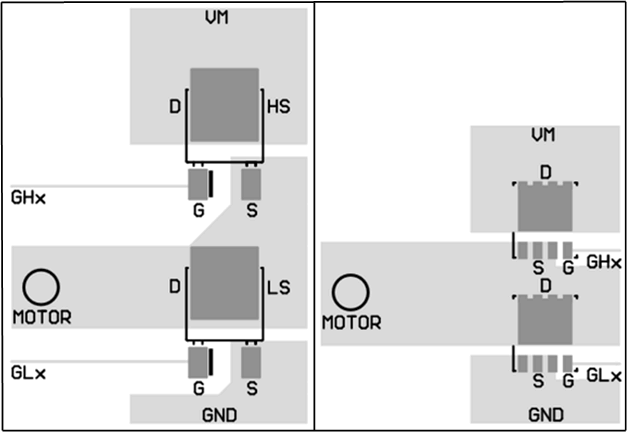

GUID-11661903-5E93-4523-A299-CBDBC2ADE520-low.gifFigure 6-6 Half-Bridge Stack Configuration
GUID-642C729F-A14E-4E57-8D98-6326A0729C43-low.gifFigure 6-7 Half-Bridge Side-by-Side Configuration

These layouts for half-bridges can be repeated for multiple half-bridge topologies, including H-bridge (two-half-bridges), inverter (three half-bridges), and dual H-bridge (four half-bridges).
