3.3 Application Software

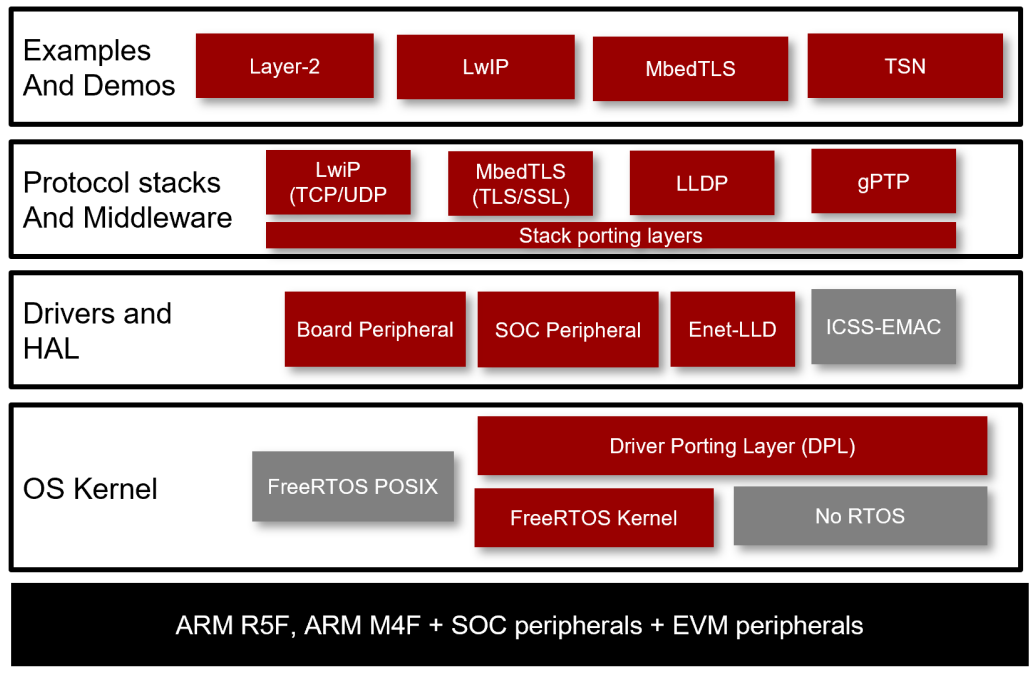

AM2612 AM2611 AM2634 AM2632 AM2631 AM263P4 AM263P2 AM263P4-Q1 AM263P2-Q1 AM2612-Q1 AM2634-Q1 AM2632 Software Block DiagramFigure 3-3 Software Block Diagram

The CPSW applications use a five-layer software architecture. Understanding this layering is critical for isolating debug issues to the correct subsystem.
