6.10.5.16.3.1 PRU_ICSSG IEP Timing
Table 6-119 PRU_ICSSG IEP Timing Requirements – Input Validated with SYNC see Figure 6-97
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PRIEP1 tw(EDC_SYNC_OUTxL) Pulse duration, EDC_SYNC_OUTx low 20P(1) - 2 ns
PRIEP2 tw(EDC_SYNC_OUTxH) Pulse duration, EDC_SYNC_OUTx high 20P(1) - 2 ns
PRIEP3 tsu(EDIO_DATA_IN-EDC_SYNC_OUTx) Setup time, EDIO_DATA_IN valid before EDC_SYNC_OUTx active edge 20 ns
PRIEP4 th(EDC_SYNC_OUTx-EDIO_DATA_IN) Hold time, EDIO_DATA_IN valid after EDC_SYNC_OUTx active edge 20 ns
(1) P = PRU_ICSSG IEP clock source period in ns.

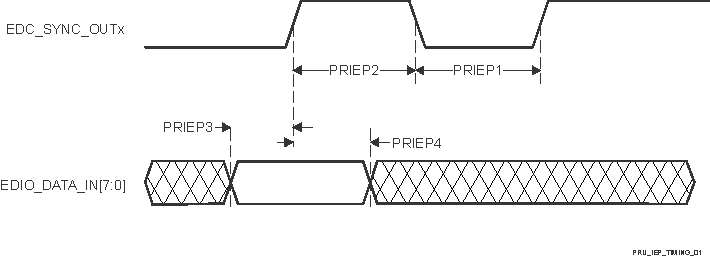

AM2434 AM2432 AM2431 PRU_ICSSG IEP SYNC Timing Requirements Figure 6-97 PRU_ICSSG IEP SYNC Timing Requirements
Table 6-120 PRU_ICSSG IEP Switching Characteristics – Digital IOs see Figure 6-98
NO. PARAMETER DESCRIPTION MIN MAX UNIT
IEPIO1 tw(EDIO_OUTVALIDL) Pulse duration, EDIO_OUTVALID low 14P(1) - 2 ns
IEPIO2 tw(EDIO_OUTVALIDH) Pulse duration, EDIO_OUTVALID high 32P(1) - 2 ns
IEPIO3 td(EDIO_OUTVALID-EDIO_DATA_OUT) Delay time, EDIO_OUTVALID to EDIO_DATA_OUT 0 18P(1) ns
IEPIO4 tsk(EDIO_DATA_OUT) EDIO_DATA_OUT skew 5 ns
(1) P = PRU_ICSSG IEP clock source period in ns.
AM2434 AM2432 AM2431 PRU_ICSSG IEP Digital IOs Timing Requirements Figure 6-98 PRU_ICSSG IEP Digital IOs Timing Requirements
Table 6-121 PRU_ICSSG IEP Timing Requirements – LATCH_INx see Figure 6-99
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PRLA1 tw(EDC_LATCH_INxL) Pulse duration, EDC_LATCH_INx low 3P(1) + 2 ns
PRLA2 tw(EDC_LATCH_INxH) Pulse duration, EDC_LATCH_INx high 3P(1) + 2 ns
(1) P = PRU_ICSSG IEP clock source period in ns.
AM2434 AM2432 AM2431 PRU_ICSSG IEP LATCH_INx Timing Requirements Figure 6-99 PRU_ICSSG IEP LATCH_INx Timing Requirements
