6.10.5.11.1 MCSPI — Controller Mode

Table 6-64, Figure 6-52, Table 6-65, and Figure 6-53 present timing requirements and switching characteristics for SPI – Controller Mode.

Table 6-64 MCSPI Timing Requirements – Controller Mode see Figure 6-52
NO. PARAMETER DESCRIPTION MIN MAX UNIT
SM4 tsu(POCI-SPICLK) Setup time, SPIn_D[x] valid before SPIn_CLK active edge 2.8 ns
SM5 th(SPICLK-POCI) Hold time, SPIn_D[x] valid after SPIn_CLK active edge 3 ns

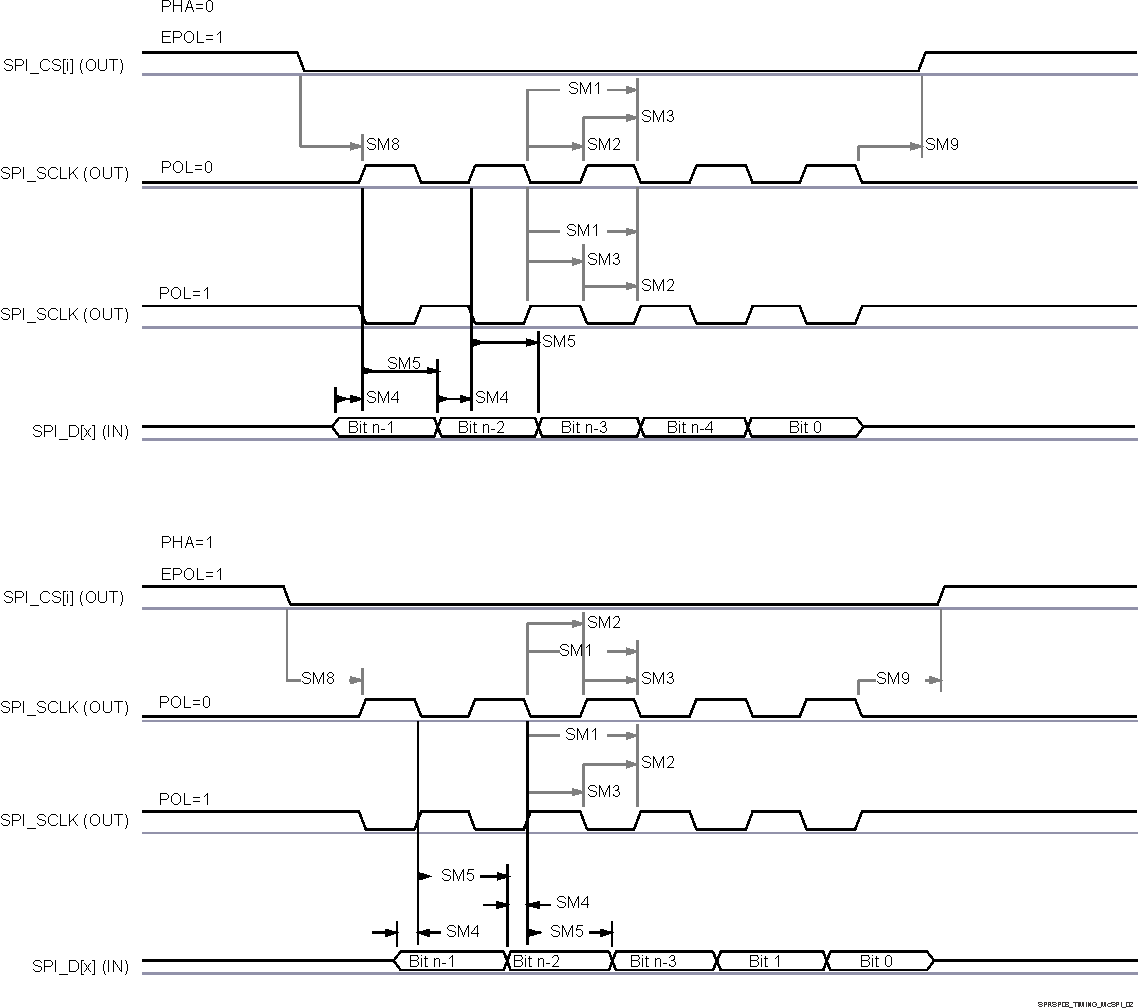

AM2434 AM2432 AM2431 MCSPI Controller Mode Receive Timing Figure 6-52 MCSPI Controller Mode Receive Timing

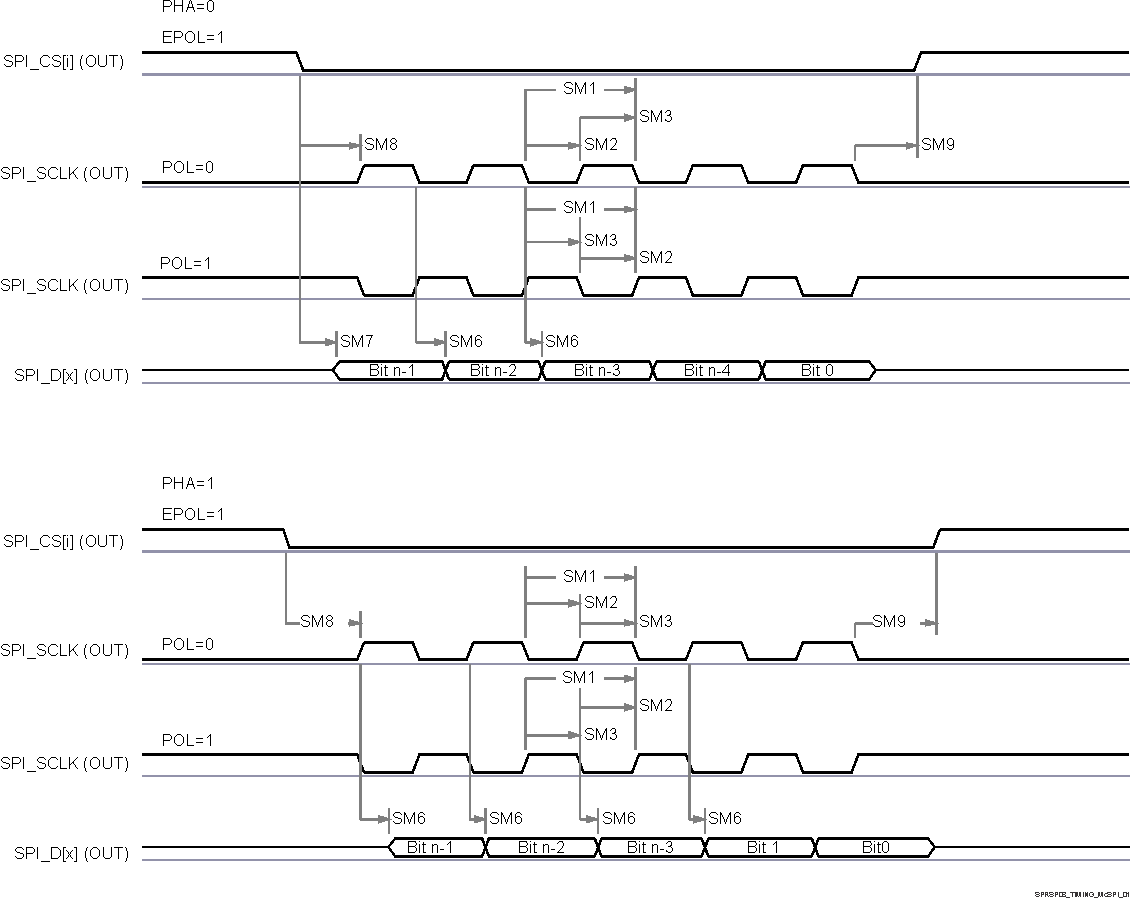

Table 6-65 MCSPI Switching Characteristics - Controller Mode see Figure 6-53
NO. PARAMETER MIN MAX UNIT
SM1 tc(SPICLK) Cycle time, SPIn_CLK 20 ns
SM2 tw(SPICLKL) Pulse duration, SPIn_CLK low 0.5P - 1(1) ns
SM3 tw(SPICLKH) Pulse duration, SPIn_CLK high 0.5P - 1(1) ns
SM6 td(SPICLK-PICO) Delay time, SPIn_CLK active edge to SPIn_D[x] -3 2.5 ns
SM7 td(CS-PICO) Delay time, SPIn_CSi active edge to SPIn_D[x] 5 ns
SM8 td(CS-SPICLK) Delay time, SPIn_CSi active to SPIn_CLK first edge PHA = 0 B - 4(2) ns
PHA = 1 A - 4(3) ns
SM9 td(SPICLK-CS) Delay time, SPIn_CLK last edge to SPIn_CSi inactive PHA = 0 A - 4(4) ns
PHA = 1 B - 4(5) ns
(1) P = SPI_CLK period in ns.
(2) T_ref is the period of the McSPI functional clock in ns. Fratio is the divide ratio of McSPI functional clock frequency to SPIn_CLK clock frequency, controlled by the CLKD and CLKG bit fields in the MSPI_CH(i)CONF register and the EXTCLK bit field in the MSPI_CH(i)CTRL register. TCS(i) is the value programmed into the chip select time control bit field of the MSPI_CH(i)CONF register.
  • When Fratio = 1; B = (TCS(i) + 0.5) * T_ref.
  • When Fratio ≥ 2 and even value; B = (TCS(i) + 0.5) * Fratio * T_ref.
  • When Fratio ≥ 3 and odd value; B = ((TCS(i) * Fratio) + ((Fratio + 1) / 2 )) * T_ref.
(3) T_ref is the period of the McSPI functional clock. Fratio is the divide ratio of McSPI functional clock frequency to SPIn_CLK clock frequency, controlled by the CLKD and CLKG bit fields in the MSPI_CH(i)CONF register and the EXTCLK bit field in the MSPI_CH(i)CTRL register. TCS(i) is the value programmed into the chip select time control bit field of the MSPI_CH(i)CONF register.
  • When Fratio = 1; A = (TCS(i) + 1) * T_ref.
  • When Fratio ≥ 2 and even value; A = (TCS(i) + 0.5) * Fratio * T_ref.
  • When Fratio ≥ 3 and odd value; A = ((TCS(i) * Fratio) + ((Fratio - 1) / 2 )) * T_ref.
(4) T_ref is the period of the McSPI functional clock. Fratio is the divide ratio of McSPI functional clock frequency to SPIn_CLK clock frequency, controlled by the CLKD and CLKG bit fields in the MSPI_CH(i)CONF register and the EXTCLK bit field in the MSPI_CH(i)CTRL register. TCS(i) is the value programmed into the chip select time control bit field of the MSPI_CH(i)CONF register.
  • When Fratio = 1; A = (TCS(i) + 1) * T_ref.
  • When Fratio ≥ 2 and even value; A = (TCS(i) + 0.5) * Fratio * T_ref.
  • When Fratio ≥ 3 and odd value; A = ((TCS(i) * Fratio) + ((Fratio + 1) / 2 )) * T_ref.
(5) T_ref is the period of the McSPI functional clock. Fratio is the divide ratio of McSPI functional clock frequency to SPIn_CLK clock frequency, controlled by the CLKD and CLKG bit fields in the MSPI_CH(i)CONF register and the EXTCLK bit field in the MSPI_CH(i)CTRL register. TCS(i) is the value programmed into the chip select time control bit field of the MSPI_CH(i)CONF register.
  • When Fratio = 1; B = (TCS(i) + 0.5) * T_ref.
  • When Fratio ≥ 2 and even value; B = (TCS(i) + 0.5) * Fratio * T_ref.
  • When Fratio ≥ 3 and odd value; B = ((TCS(i) * Fratio) + ((Fratio - 1) / 2 )) * T_ref.
AM2434 AM2432 AM2431 MCSPI Controller Mode Transmit Timing Figure 6-53 MCSPI Controller Mode Transmit Timing
