6.10.5.3 ECAP

Table 6-37, Table 6-38, Figure 6-27, Table 6-39, and Figure 6-28 present timing conditions, requirements, and switching characteristics for ECAP.

Table 6-37 ECAP Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 1 4 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 7 pF
Table 6-38 ECAP Timing Requirements see Figure 6-27
NO. PARAMETER DESCRIPTION MIN MAX UNIT
CAP1 tw(CAP) Pulse duration, CAP (asynchronous) 2 + 2P(1) ns
(1) P = sysclk period in ns.

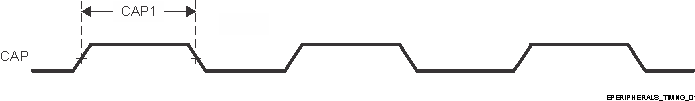

AM2434 AM2432 AM2431 ECAP Timings Requirements Figure 6-27 ECAP Timings Requirements
Table 6-39 ECAP Switching Characteristics see Figure 6-28
NO. PARAMETER DESCRIPTION MIN MAX UNIT
CAP2 tw(APWM) Pulse duration, APWMx high/low -2 + 2P(1) ns
(1) P = sysclk period in ns.
AM2434 AM2432 AM2431 ECAP Switching Characteristics Figure 6-28 ECAP Switching Characteristics

For more information, see Enhanced Capture (ECAP) Module section in Peripherals chapter in the device TRM.
