6.10.5.16.1.2 PRU_ICSSG PRU Parallel Capture Mode Timing
Table 6-109 PRU_ICSSG PRU Timing Requirements – Parallel Capture Mode see Figure 6-88 and Figure 6-89
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PRPC1 tc(CLOCK) Cycle time, CLOCKIN 20 ns
PRPC2 tw(CLOCKL) Pulse duration, CLOCKIN low 0.45P(1) ns
PRPC3 tw(CLOCKH) Pulse duration, CLOCKIN high 0.45P(1) ns
PRPC4 tsu(DATAIN-CLOCK) Setup time, DATAIN valid before CLOCKIN active edge 4 ns
PRPC5 th(CLOCK-DATAIN) Hold time, DATAIN valid after CLOCKIN active edge 0 ns
(1) P = CLOCKIN cycle time in ns

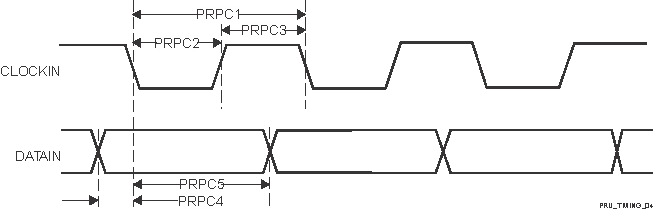

AM2434 AM2432 AM2431 PRU_ICSSG PRU Parallel Capture Timing Requirements – Rising Edge Mode Figure 6-88 PRU_ICSSG PRU Parallel Capture Timing Requirements – Rising Edge Mode
AM2434 AM2432 AM2431 PRU_ICSSG PRU Parallel Capture Timing Requirements – Falling Edge Mode Figure 6-89 PRU_ICSSG PRU Parallel Capture Timing Requirements – Falling Edge Mode
