SPRSP65F April 2021 – January 2023 AM2431 , AM2432 , AM2434
PRODUCTION DATA
Refer to the PDF data sheet for device specific package drawings
Various external clock inputs/outputs are needed to drive the device. Summary of these input clock signals is as follows:

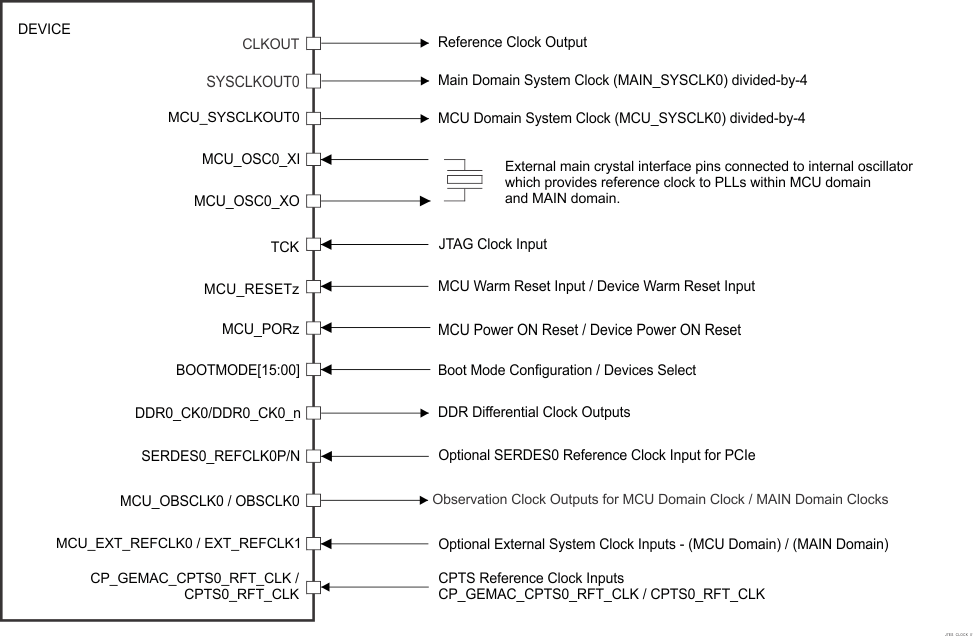

Figure 7-16 shows the external input clock sources and the output clocks to peripherals.
For more information about Input clock interfaces, see Clocking section in Device Configuration chapter in the device TRM.
