6.10.6.1 Trace

Table 6-147 Trace Timing Conditions
PARAMETER MIN MAX UNIT
OUTPUT CONDITIONS
CL Output load capacitance 2 5 pF
PCB CONNECTIVITY REQUIREMENTS
td(Trace Mismatch) Propagation delay mismatch across all traces VDDSHV3 = 1.8V 200 ps
VDDSHV3 =3.3V 100 ps

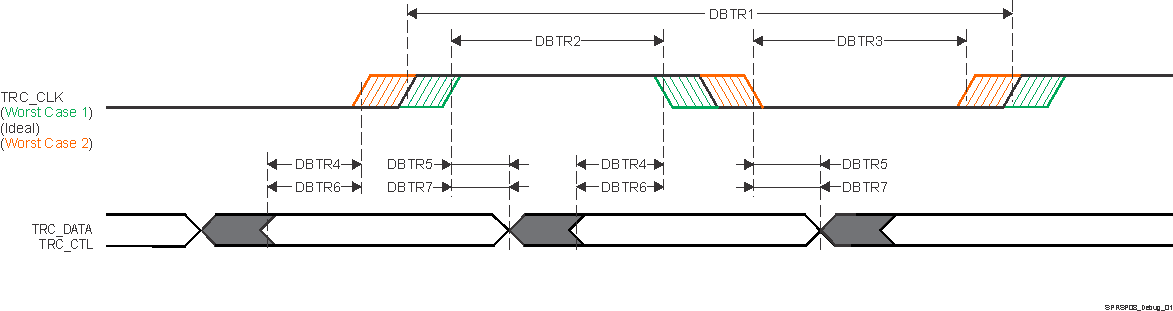

Table 6-148 Trace Switching Characteristics
NO. PARAMETER MIN MAX UNIT
1.8V Mode
DBTR1 tc(TRC_CLK) Cycle time, TRC_CLK 6.50 ns
DBTR2 tw(TRC_CLKH) Pulse width, TRC_CLK high 2.50 ns
DBTR3 tw(TRC_CLKL) Pulse width, TRC_CLK low 2.50 ns
DBTR4 tosu(TRC_DATAV-TRC_CLK) Output setup time, TRC_DATA valid to TRC_CLK edge 0.81 ns
DBTR5 toh(TRC_CLK-TRC_DATAI) Output hold time, TRC_CLK edge to TRC_DATA invalid 0.81 ns
DBTR6 tosu(TRC_CTLV-TRC_CLK) Output setup time, TRC_CTL valid to TRC_CLK edge 0.81 ns
DBTR7 toh(TRC_CLK-TRC_CTLI) Output hold time, TRC_CLK edge to TRC_CTL invalid 0.81 ns
3.3V Mode
DBTR1 tc(TRC_CLK) Cycle time, TRC_CLK 8.67 ns
DBTR2 tw(TRC_CLKH) Pulse width, TRC_CLK high 3.58 ns
DBTR3 tw(TRC_CLKL) Pulse width, TRC_CLK low 3.58 ns
DBTR4 tosu(TRC_DATAV-TRC_CLK) Output setup time, TRC_DATA valid to TRC_CLK edge 1.08 ns
DBTR5 toh(TRC_CLK-TRC_DATAI) Output hold time, TRC_CLK edge to TRC_DATA invalid 1.08 ns
DBTR6 tosu(TRC_CTLV-TRC_CLK) Output setup time, TRC_CTL valid to TRC_CLK edge 1.08 ns
DBTR7 toh(TRC_CLK-TRC_CTLI) Output hold time, TRC_CLK edge to TRC_CTL invalid 1.08 ns
AM2434 AM2432 AM2431 Trace Switching Characteristics Figure 6-112 Trace Switching Characteristics
