6.11.5.16.2.1 PRU_ICSSG PWM Timing
Table 6-122 PRU_ICSSG PWM Switching Characteristics see Figure 6-99
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PRPWM1 tsk(PWM_A-PWM_B) Skew, PWM_A to PWM_B 5 ns

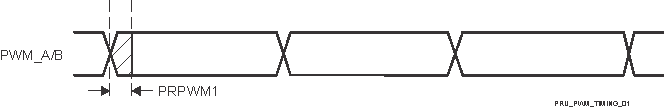

AM2434 AM2432 AM2431 PRU_ICSSG PWM Timing Figure 6-99 PRU_ICSSG PWM Timing
