4.1.4.1 Using GEL Scripts in CCS

CCS has GEL scripts for retrieving specific CPSW related information such as PHY register dumps, CPSW statistics, ALE table dumps, and so forth. To use a GEL script in CCS, make sure your CCS debug session is running and the Ethernet application is loaded and running on the CPU. To get a GEL script dump, follow the steps listed below:

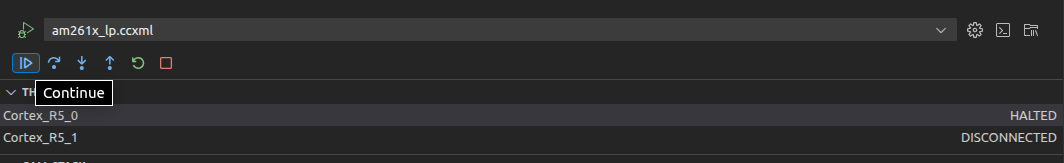

  1. Verify the CPU is in the HALTED state.
  2. Navigate to Scripts in CCS.
    AM2612 AM2611 AM2634 AM2632 AM2631 AM263P4 AM263P2 AM263P4-Q1 AM263P2-Q1 AM2612-Q1 AM2634-Q1 AM2632 CCS Debug Session Figure 4-8 CCS Debug Session

  3. Select the GEL script to run.
    AM2612 AM2611 AM2634 AM2632 AM2631 AM263P4 AM263P2 AM263P4-Q1 AM263P2-Q1 AM2612-Q1 AM2634-Q1 AM2632 CCS GEL Script Selection Figure 4-9 CCS GEL Script Selection

    Note: The GEL output section shows the result of the GEL script. As seen in the Figure 4-10 example, the screen shot shows the ALE table dump.
    AM2612 AM2611 AM2634 AM2632 AM2631 AM263P4 AM263P2 AM263P4-Q1 AM263P2-Q1 AM2612-Q1 AM2634-Q1 AM2632 CCS ALE Table GEL Script Output Figure 4-10 CCS ALE Table GEL Script Output

Similarly, GEL scripts can be used to retrieve a dump of the PHY registers, and the CPSW statistics. This eases the debug by providing crucial register level information which can be very useful.

Figure 4-11 shows the PHY register dump for the TI DP83869 PHY connected to the AM261x-LP (verify that the PHY address is entered correctly and that the CPSW variant is chosen as CPSW3G).

AM2612 AM2611 AM2634 AM2632 AM2631 AM263P4 AM263P2 AM263P4-Q1 AM263P2-Q1 AM2612-Q1 AM2634-Q1 AM2632 CCS PHY Register GEL Script Dump Figure 4-11 CCS PHY Register GEL Script Dump
