6.10.3.1 Reset Timing

Tables and figures provided in this section define timing conditions, timing requirements, and switching characteristics for reset related signals.

Table 6-4 Reset Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate VDD(1) = 1.8V 0.0018 V/ns
VDD(1) = 3.3V 0.0033 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 30 pF
(1) VDD stands for corresponding power supply. For more information on the power supply name and the corresponding ball(s), see POWER column of the Pin Attributes table.

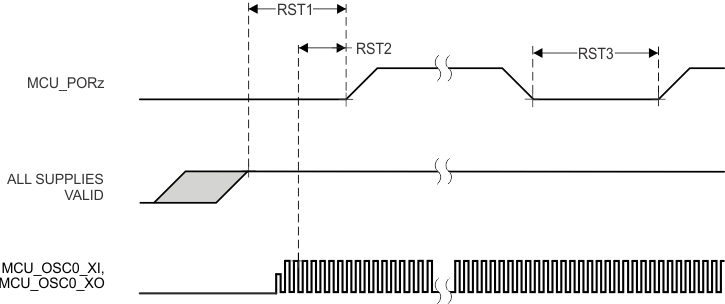

Table 6-5 MCU_PORz Timing Requirements see Figure 6-5
NO. PARAMETER MIN MAX UNIT
RST1 th(SUPPLIES_VALID - MCU_PORz) Hold time, MCU_PORz active (low) at Power-up after supplies valid (using external crystal circuit) 9500000 ns
RST2 Hold time, MCU_PORz active (low) at Power-up after supplies valid and external clock stable (using external LVCMOS clock source) 1200 ns
RST3 tw(MCU_PORzL) Pulse Width, MCU_PORz low after Power-up (without removal of Power or system reference clock MCU_OSC0_XI/XO) 1200 ns
AM2434 AM2432 AM2431 MCU_PORz Timing Requirements Figure 6-5 MCU_PORz Timing Requirements
Table 6-6 MCU_RESETSTATz, and RESETSTATz Switching Characteristics see Figure 6-6
NO. PARAMETER MIN MAX UNIT
RST4 td(MCU_PORzL-MCU_RESETSTATzL) Delay time, MCU_PORz active (low) to MCU_RESETSTATz active (low) 0 ns
RST5 td(MCU_PORzH-MCU_RESETSTATzH) Delay time, MCU_PORz inactive (high) to MCU_RESETSTATz inactive (high) 6120*S(1) ns
RST6 td(MCU_PORzL-RESETSTATzL) Delay time, MCU_PORz active (low) to RESETSTATz active (low) 0 ns
RST7 td(MCU_PORzH-RESETSTATzH) Delay time, MCU_PORz inactive (high) to RESETSTATz inactive (high) 9195*S(1) ns
RST8 tw(MCU_RESETSTATzL) Pulse Width, MCU_RESETSTATz low (SW_MCU_WARMRST) 966*S(1) ns
RST9 tw(RESETSTATzL) Pulse Width, RESETSTATz low (SW_MCU_WARMRST, SW_MAIN_PORz, or SW_MAIN_WARMRST) 4040*S ns
(1) S = MCU_OSC0_XI/XO clock period in ns.

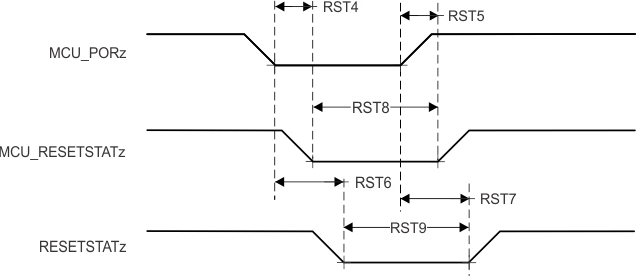

AM2434 AM2432 AM2431 MCU_RESETSTATz, and RESETSTATz Switching Characteristics Figure 6-6 MCU_RESETSTATz, and RESETSTATz Switching Characteristics
Table 6-7 MCU_RESETz Timing Requirements see Figure 6-7
NO. PARAMETER MIN MAX UNIT
RST10 tw(MCU_RESETzL)(1) Pulse Width, MCU_RESETz active (low) 1200 ns
(1) This timing parameter is valid only after all supplies are valid and MCU_PORz has been asserted for the specified time.
Table 6-8 MCU_RESETSTATz, and RESETSTATz Switching Characteristics see Figure 6-7
NO. PARAMETER MIN MAX UNIT
RST11 td(MCU_RESETzL-MCU_RESETSTATzL) Delay time, MCU_RESETz active (low) to MCU_RESETSTATz active (low) 0   ns
RST12 td(MCU_RESETzH-MCU_RESETSTATzH) Delay time, MCU_RESETz inactive (high) to MCU_RESETSTATz inactive (high) 966*S(1)   ns
RST13 td(MCU_RESETzL-RESETSTATzL) Delay time, MCU_RESETz active (low) to RESETSTATz active (low) 960   ns
RST14 td(MCU_RESETzH-RESETSTATzH) Delay time, MCU_RESETz inactive (high) to RESETSTATz inactive (high) 4040*S(1)   ns
(1) S = MCU_OSC0_XI/XO clock period in ns.
AM2434 AM2432 AM2431 MCU_RESETz, MCU_RESETSTATz, and RESETSTATz Timing Requirements and Switching Characteristics Figure 6-7 MCU_RESETz, MCU_RESETSTATz, and RESETSTATz Timing Requirements and Switching Characteristics
Table 6-9 RESET_REQz Timing Requirements see Figure 6-8
NO. PARAMETER MIN MAX UNIT
RST15 tw(RESET_REQzL)(1) Pulse Width, RESET_REQz active (low) 1200   ns
(1) This timing parameter is valid only after all supplies are valid and MCU_PORz has been asserted for the specified time.
Table 6-10 RESETSTATz Switching Characteristics see Figure 6-8
NO. PARAMETER MIN MAX UNIT
RST16 td(RESET_REQzL-RESETSTATzL) Delay time, RESET_REQz active (low) to RESETSTATz active (low) 900*T(1) ns
RST17 td(RESET_REQzH-RESETSTATzH) Delay time, RESET_REQz inactive (high) to RESETSTATz inactive (high) 4040*S(2) ns
(1) T = Reset Isolation Time (Software Dependent)
(2) S = MCU_OSC0_XI/XO clock period in ns.
AM2434 AM2432 AM2431 RESET_REQz and RESETSTATz Timing Requirements and Switching Characteristics Figure 6-8 RESET_REQz and RESETSTATz Timing Requirements and Switching Characteristics
Table 6-11 EMUx Timing Requirements see Figure 6-9
NO. PARAMETER MIN MAX UNIT
RST18 tsu(EMUx-MCU_PORz) Setup time, EMU[1:0] before MCU_PORz inactive (high) 3*S(1) ns
RST19 th(MCU_PORz - EMUx) Hold time, EMU[1:0] after MCU_PORz inactive (high) 10 ns
(1) S = MCU_OSC0_XI/XO clock period in ns.

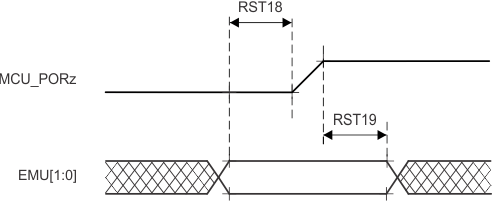

AM2434 AM2432 AM2431 EMUx Timing Requirements Figure 6-9 EMUx Timing Requirements
Table 6-12 BOOTMODE Timing Requirements see Figure 6-10
NO. PARAMETER MIN MAX UNIT
RST23 tsu(BOOTMODE-PORz_OUT) Setup time, BOOTMODE[15:00] before PORz_OUT high (External MCU PORz event or Software SW_MAIN_PORz) 3*S(1)   ns
RST24 th(PORz_OUT - BOOTMODE) Hold time, BOOTMODE[15:00] after PORz_OUT high (External MCU PORz event, or Software SW_MAIN_PORz) 0   ns
(1) S = MCU_OSC0_XI/XO clock period in ns.
Table 6-13 PORz_OUT Switching Characteristics see Figure 6-10
NO. PARAMETER MIN MAX UNIT
RST25 td(MCU_PORzL-PORz_OUT) Delay time, MCU_PORz active (low) to PORz_OUT active (low) 0   ns
RST26 td(MCU_PORzH-PORz_OUT) Delay time, MCU_PORz inactive (high) to PORz_OUT inactive (high) 1840   ns
RST27 tw(PORz_OUTL) Pulse Width, PORz_OUT low (MCU_PORz or SW_MAIN_PORz) 1200   ns

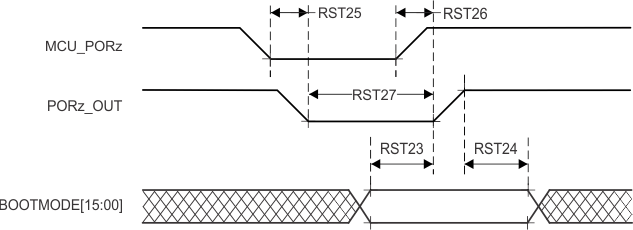

AM2434 AM2432 AM2431 BOOTMODE Timing Requirements and PORz_OUT Switching Characteristics Figure 6-10 BOOTMODE Timing Requirements and PORz_OUT Switching Characteristics
