6.11.5.16.2.5 UHS–I SDR50 Mode

Table 6-108 and Figure 6-87 presents switching characteristics for MMC1/MMC2 – UHS-I SDR50 Mode.

Table 6-108 Switching Characteristics for MMC1/MMC2 – UHS-I SDR50 Mode see Figure 6-87
NO. PARAMETER MIN MAX UNIT
fop(clk) Operating frequency, MMCx_CLK 100 MHz
SDR505 tc(clk) Cycle time, MMCx_CLK 10 ns
SDR506 tw(clkH) Pulse duration, MMCx_CLK high 4.45 ns
SDR507 tw(clkL) Pulse duration, MMCx_CLK low 4.45 ns
SDR508 td(clkL-cmdV) Delay time, MMCx_CLK rising edge to MMCx_CMD transition 1.2 6.35 ns
SDR509 td(clkL-dV) Delay time, MMCx_CLK rising edge to MMCx_DAT[3:0] transition 1.2 6.35 ns

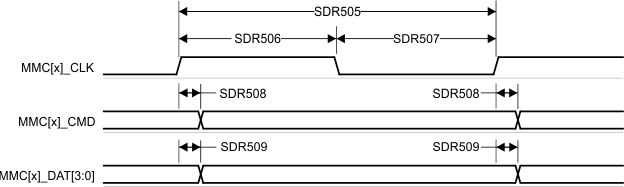

AM62L MMC1/MMC2 – UHS-I SDR50 – Transmit Mode Figure 6-98 MMC1/MMC2 – UHS-I SDR50 – Transmit Mode
