6.11.4.1.5 LFOSC0 Not Used

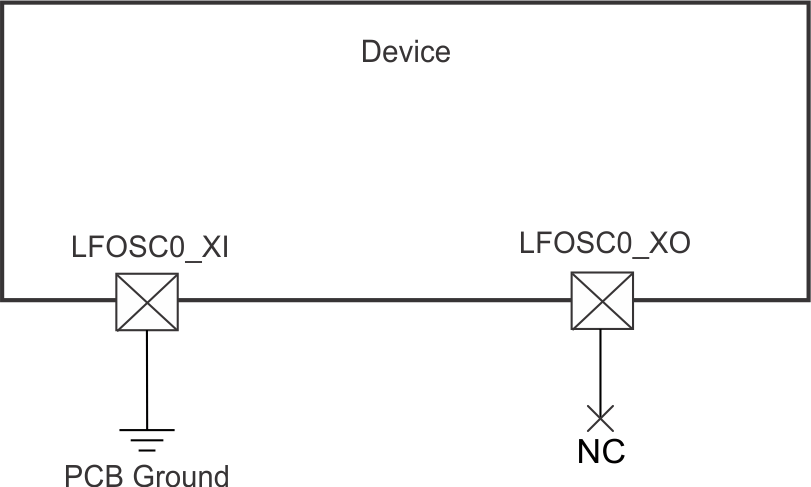

Figure 6-29 shows the recommended oscillator connections when LFOSC0 is not used.

AM62L LFOSC0 Not Used Figure 6-29 LFOSC0 Not Used
