6.11.3.1 Reset Timing

Tables and figures provided in this section define timing conditions, timing requirements, and switching characteristics for reset related signals.

Table 6-8 Reset Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate VDD(1) = 1.8V 0.0018 V/ns
VDD(1) = 3.3V 0.0033 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 30 pF
(1) VDD stands for corresponding power supply. For more information on the power supply name and the corresponding ball(s), see POWER column of the Pin Attributes table.
Table 6-9 PORz Timing Requirements see Figure 6-13
NO. PARAMETER MIN MAX UNIT
RST1 th(SUPPLIES_VALID - PORz) Hold time, PORz active (low) at Power-up after supplies valid (using external crystal circuit) 9500000 ns
RST2 Hold time, PORz active (low) at Power-up after supplies valid and external clock stable (using external LVCMOS clock source) 1200 ns
RST3 tw(PORzL) Pulse Width, PORz low after Power-up (without removal of Power or system reference clock WKUP_OSC0_XI/XO) 1200 ns

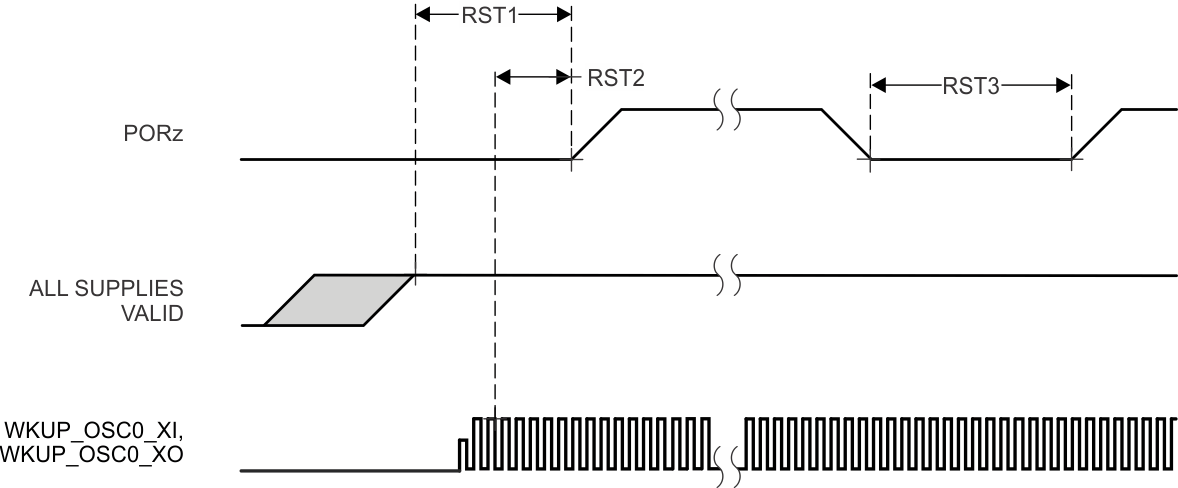

AM62L PORz Timing Requirements Figure 6-13 PORz Timing Requirements
Table 6-10 RESETSTATz Switching Characteristics see Figure 6-14
NO. PARAMETER MIN MAX UNIT
RST6 td(PORzL-RESETSTATzL) Delay time, PORz active (low) to RESETSTATz active (low) 0 ns
RST7 td(PORzH-RESETSTATzH) Delay time, PORz inactive (high) to RESETSTATz inactive (high) 9195*S(1) ns
RST9 tw(RESETSTATzL) Pulse Width, RESETSTATz low ( SW_WARMRST) 4040*S(1) ns
(1) S = WKUP_OSC0_XI/XO clock period in ns.

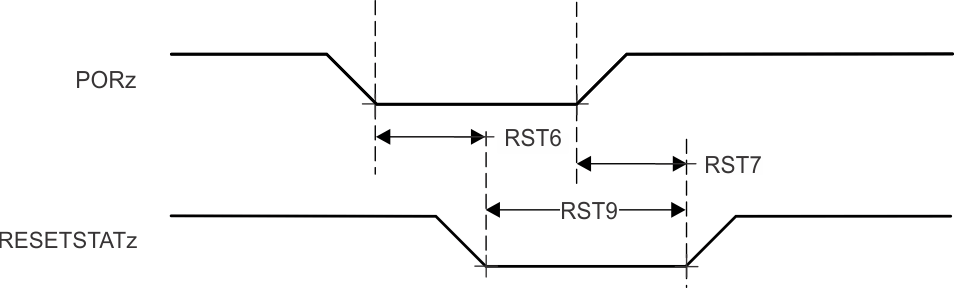

AM62L RESETSTATz Switching Characteristics Figure 6-14 RESETSTATz Switching Characteristics
Table 6-11 RESETz Timing Requirements see Figure 6-15
NO. PARAMETER MIN MAX UNIT
RST10 tw(RESETzL)(1) Pulse Width, RESETz active (low) 1200 ns
(1) This timing parameter is valid only after all supplies are valid and PORz has been asserted for the specified time.
Table 6-12 RESETSTATz Switching Characteristics see Figure 6-15
NO. PARAMETER MIN MAX UNIT
RST13 td(RESETzL-RESETSTATzL) Delay time, RESETz active (low) to RESETSTATz active (low) 960   ns
RST14 td(RESETzH-RESETSTATzH) Delay time, RESETz inactive (high) to RESETSTATz inactive (high) 4040*S(1)   ns
(1) S = WKUP_OSC0_XI/XO clock period in ns.
AM62L RESETz and RESETSTATz Timing Requirements and Switching Characteristics Figure 6-15 RESETz and RESETSTATz Timing Requirements and Switching Characteristics
Table 6-13 EMUx Timing Requirements see Figure 6-16
NO. PARAMETER MIN MAX UNIT
RST18 tsu(EMUx-PORz) Setup time, EMU[1:0] before PORz inactive (high) 3*S(1) ns
RST19 th(PORz - EMUx) Hold time, EMU[1:0] after PORz inactive (high) 10 ns
(1) S = WKUP_OSC0_XI/XO clock period in ns.
AM62L EMUx Timing Requirements Figure 6-16 EMUx Timing Requirements
Table 6-14 BOOTMODE Timing Requirements see Figure 6-17
NO. PARAMETER MIN MAX UNIT
RST23 tsu(BOOTMODE-PORz) Setup time, BOOTMODE[15:00] valid before PORz high 3*S(1)   ns
RST24 th(PORz - BOOTMODE) Hold time, BOOTMODE[15:00] valid after PORz high 0   ns
(1) S = WKUP_OSC0_XI/XO clock period in ns.

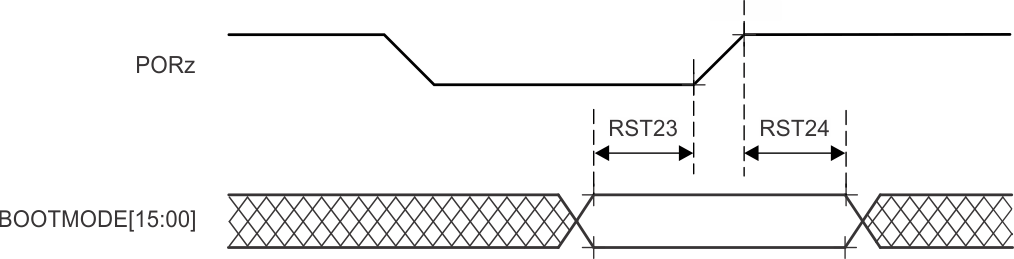

AM62L BOOTMODE Timing Requirements Figure 6-17 BOOTMODE Timing Requirements
