6.11.5.7.2 JTAG
Table 6-48 JTAG Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 0.5 2.0 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 5 15 pF
PCB CONNECTIVITY REQUIREMENTS
td(Trace Delay) Propagation delay of each trace 83.5 1000(1) ps
td(Trace Mismatch Delay) Propagation delay mismatch across all traces 100 ps
(1) Maximum propagation delay associated with the JTAG signal traces has a significant impact on maximum TCK operating frequency. It may be possible to increase the trace delay beyond this value, but the operating frequency of TCK must be reduced to account for the additional trace delay.
Table 6-49 JTAG Timing Requirements see Figure 6-44
NO. MIN MAX UNIT
J1 tc(TCK) Cycle time minimum, TCK 40(1) ns
J2 tw(TCKH) Pulse width minimum, TCK high 0.4P(2) ns
J3 tw(TCKL) Pulse width minimum, TCK low 0.4P(2) ns
J4 tsu(TDI-TCK) Input setup time minimum, TDI valid to TCK high 2 ns
tsu(TMS-TCK) Input setup time minimum, TMS valid to TCK high 2 ns
J5 th(TCK-TDI) Input hold time minimum, TDI valid from TCK high 2 ns
th(TCK-TMS) Input hold time minimum, TMS valid from TCK high 2 ns
(1) The maximum TCK operating frequency assumes the following timing requirements and switching characteristis for the attached debugger. The operating frequency of TCK must be reduced to provide appropriate timing margin if the debugger exceeds any of these assumptions.
  • Minimum TDO setup time of 2ns relative to the rising edge of TCK
  • TDI and TMS output delay in the range of -13.9ns to 13.9ns relative to the falling edge of TCK
(2) P = TCK cycle time in ns
Table 6-50 JTAG Switching Characteristics see Figure 6-44
NO. PARAMETER MIN MAX UNIT
J6 td(TCKL-TDOI) Delay time minimum, TCK low to TDO invalid 0 ns
J7 td(TCKL-TDOV) Delay time maximum, TCK low to TDO valid 8 ns

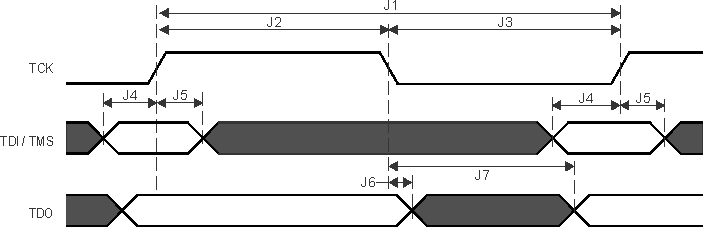

AM62L JTAG Timing Requirements and Switching Characteristics Figure 6-44 JTAG Timing Requirements and Switching Characteristics
