6.11.5.17.1.1 OSPI0 With PHY Data Training

Read and write data valid windows will shift due to variation in process, voltage, temperature, and operating frequency. A data training method may be implemented to dynamically configure optimal read and write timing. Implementing data training enables proper operation across temperature with a specific process, voltage, and frequency operating condition, while achieving a higher operating frequency.

Data transmit and receive timing parameters are not defined for the data training use case since they are dynamically adjusted based on the operating condition.

Table 6-112 defines DLL delays required for OSPI0 with Data Training. Table 6-113, Figure 6-101, Figure 6-102, Table 6-114, Figure 6-103, and Figure 6-104 present timing requirements and switching characteristics for OSPI0 with Data Training.

Table 6-112 OSPI0 DLL Delay Mapping for PHY Data Training
MODE REGISTER BIT FIELD DELAY VALUE
OSPI_PHY_CONFIGURATION_REG
Transmit
All modes PHY_CONFIG_TX_DLL_DELAY_FLD (1)
Receive
All modes PHY_CONFIG_RX_DLL_DELAY_FLD (2)
PHY_MASTER_CONTROL_REG
All modes PHY_MASTER_PHASE_DETECT_SELECTOR_FLD 0x1
(1) Transmit DLL delay value determined by training software
(2) Receive DLL delay value determined by training software
Table 6-113 OSPI0 Timing Requirements – PHY Data Training see Figure 6-101 , and Figure 6-102
NO. MODE MIN MAX UNIT
O15 tsu(D-LBCLK) Setup time, OSPI0_D[7:0] valid before active OSPI0_DQS edge DDR with DQS (1) ns
O16 th(LBCLK-D) Hold time, OSPI0_D[7:0] valid after active OSPI0_DQS edge DDR with DQS (1) ns
O21 tsu(D-LBCLK) Setup time, OSPI0_D[7:0] valid before active OSPI0_DQS edge SDR with External Board Loopback (1) ns
O22 th(LBCLK-D) Hold time, OSPI0_D[7:0] valid after active OSPI0_DQS edge SDR with External Board Loopback (1) ns
tDVW Data valid window (O15 + O16) DDR with DQS 1.6 ns
Data valid window (O21 + O22) SDR with External Board Loopback 2.3 ns
(1) Minimum setup and hold time requirements for OSPI0_D[7:0] inputs are not defined when Data Training is used to find the optimum data valid window. The tDVW parameter defines the minimum data invalid window required. This parameter is provided in lieu of minimum setup and minimum hold times, where it must be used to check compatibility with the data valid window provided by an attached device.
AM62L OSPI0 Timing Requirements – PHY Data Training, DDR with DQS Figure 6-101 OSPI0 Timing Requirements – PHY Data Training, DDR with DQS
AM62L OSPI0 Timing Requirements – PHY Data Training, SDR with External Board Loopback Figure 6-102 OSPI0 Timing Requirements – PHY Data Training, SDR with External Board Loopback

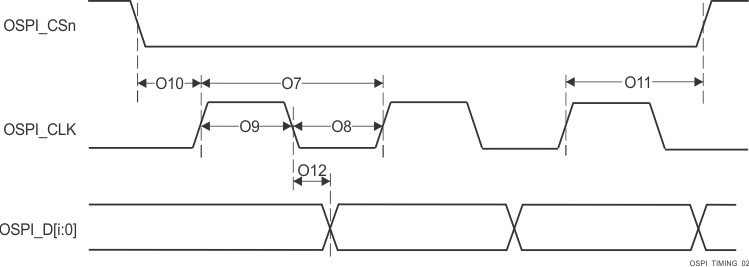

Table 6-114 OSPI Switching Characteristics – PHY Data Training See Figure 6-103 and Figure 6-104
NO. PARAMETER MODE MIN MAX UNIT
O1 tc(CLK) Cycle time, OSPI0_CLK DDR 6.0 10 ns
O7 SDR 6.0 10 ns
O2 tw(CLKL) Pulse duration, OSPI0_CLK low DDR ((0.475P(1)) - 0.3) ns
O8 SDR
O3 tw(CLKH) Pulse duration, OSPI0_CLK high DDR ((0.475P(1)) - 0.3) ns
O9 SDR
O4 td(CSn-CLK) Delay time, OSPI0_CSn[3:0] active edge to OSPI0_CLK rising edge DDR ((0.475P(1)) + (0.975M(2)R(4)) + (0.04TD(5)) - 1) ((0.525P(1)) + (1.025M(2)R(4)) + (0.11TD(5)) + 1) ns
O10 SDR
O5 td(CLK-CSn) Delay time, OSPI0_CLK rising edge to OSPI0_CSn[3:0] inactive edge DDR ((0.475P(1)) + (0.975N(3)R(4)) - (0.11TD(5)) - 1) ((0.525P(1)) + (1.025N(3)R(4)) - (0.04TD(5)) + 1) ns
O11 SDR
O6 td(CLK-D) Delay time, OSPI0_CLK active edge to OSPI0_D[7:0] transition DDR (6) (6) ns
O12 SDR
tDIVW Data invalid window (O6 Max - Min) DDR 1.6 ns
Data invalid window (O12 Max - Min) SDR
(1) P = SCLK cycle time in ns = OSPI0_CLK cycle time in ns
(2) M = OSPI_DEV_DELAY_REG[D_INIT_FLD]
(3) N = OSPI_DEV_DELAY_REG[D_AFTER_FLD]
(4) R = reference clock cycle time in ns
(5) TD = PHY_CONFIG_TX_DLL_DELAY_FLD
(6) Minimum and maximum delay times for OSPI0_D[7:0] outputs are not defined when Data Training is used to find the optimum data valid window. The tDIVW parameter defines the maximum data invalid window. This parameter is provided in lieu of minimum and maximum delay times, where it must be used to check compatibility with the data valid window requirements of an attached device.
AM62L OSPI0 Switching Characteristics – PHY DDR Data Training Figure 6-103 OSPI0 Switching Characteristics – PHY DDR Data Training
AM62L OSPI0 Switching Characteristics – PHY SDR Data Training Figure 6-104 OSPI0 Switching Characteristics – PHY SDR Data Training
